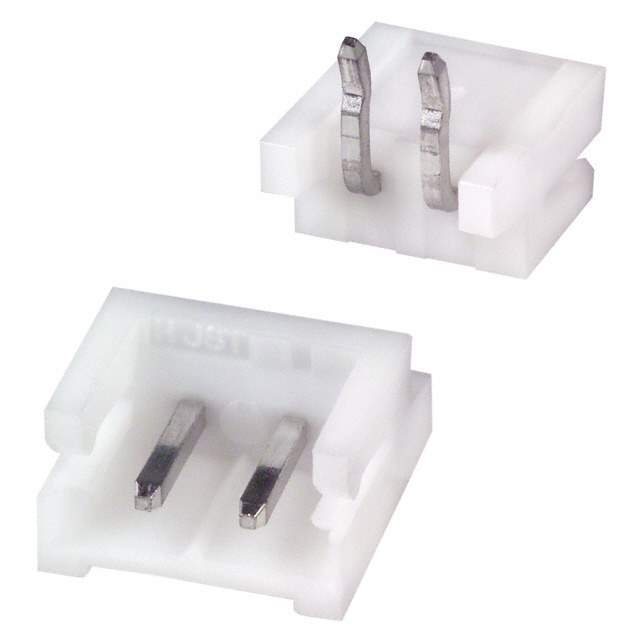

S2B-EH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S2B-EH(LF)(SN)

Part No S2B-EH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Style Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.165" (4.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801342-S2B-EH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S2B-EH(LF)(SN) CAD Model

Description

The 801342-S2B-EH(LF)(SN) is a 2-position through hole, right-angle header connector manufactured by JST Sales America Inc.

  • Termination: Press-fit and solder
  • Contact Type: Male Pin
  • Voltage Rating: 250V
  • Shrouding: 3 wall
  • Contact Shape: Square
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Pitch-Mating: 0.098" (2.50mm)
  • Category: Connectors
  • Popularity: High
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Current Rating: 3A
