Same model may have multiple batches, images only for reference.

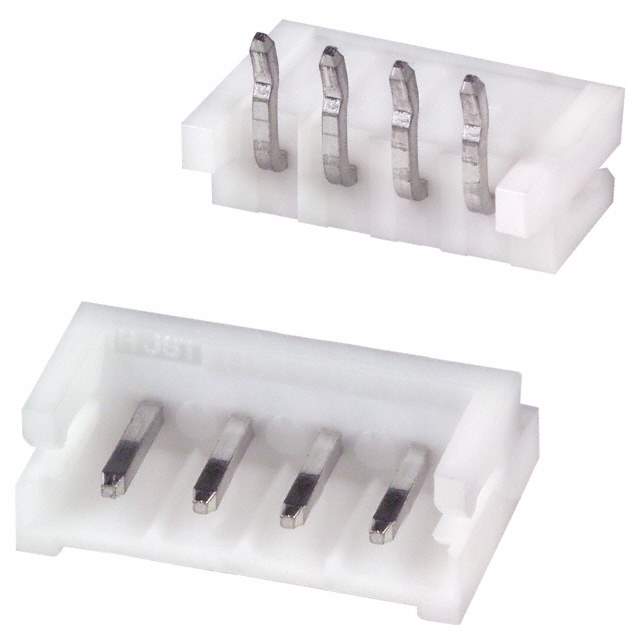

S4B-EH Real Image
Same model may have multiple batches, images only for reference.

S4B-EH

Part No S4B-EH
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Disconnectable Crimp style connectors | CONN HEADER R/A 4POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Style Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.165" (4.20mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 734120-S4B-EH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S4B-EH CAD Model

Description

The 734120-S4B-EH is a 4-position header connector designed by JST Sales America Inc.

  • Connector Type: a male pin with a shrouded 3-wall design.
  • Fastening Type: a latch lock
  • Mounting: through hole with a right angle orientation.
  • Contact Material: brass with a tin-lead finish.
  • Voltage Rating: 250V
  • Insulation Material: polyamide (PA66) and nylon 6/6, with a natural color.
  • Operating Temperature Range: -25°C to 85°C
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 1,000
  • Current Rating: 3A
