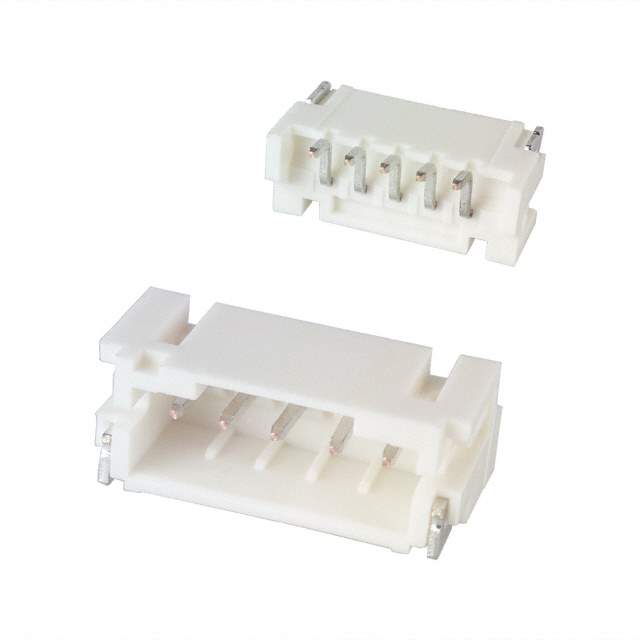

The S5B-PH-SM4-TB(LF)(SN)(P) is a 5-position, 2mm pitch, surface mount (SMT) header from JST's PH series. It is a reliable and compact connector designed for board-to-wire connections in various electronic devices.

Applications

• Signal connections in electronic devices
• Control circuits
• Data transmission
• Power supply connections (low power)
• Consumer electronics (e.g., TVs, audio equipment)
• Industrial equipment

Features

• 2mm Pitch: Provides a compact solution for high-density applications.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• 5 Positions: Accommodates up to 5 individual wires.
• PH Series: Part of JST's widely used and reliable PH series connectors.
• RoHS Compliant: Lead-free construction, compliant with RoHS environmental standards.
• Tin Plating: Provides good solderability and corrosion resistance.
• Polarization Feature: Prevents mismating with corresponding connectors.

Benefits

• Reliable Connection: Ensures a secure and stable electrical connection.
• Compact Size: Suitable for applications with limited space.
• Easy Assembly: SMT design simplifies assembly process and reduces manufacturing costs.
• Wide Availability: PH series connectors are widely available and well-supported.
• Environmentally Friendly: RoHS compliance ensures environmentally responsible construction.

Additional Details

The S5B-PH-SM4-TB(LF)(SN)(P) is designed to mate with JST's PH series crimp contacts and housings. The TB in the part number indicates tape and reel packaging for automated pick-and-place assembly. The (LF) indicates lead-free construction. (SN) refers to the tin plating. (P) might indicate a specific packaging or option. The header is typically reflow soldered onto a PCB. The datasheet will provide detailed specifications on the connector's dimensions, electrical characteristics, and materials. Proper soldering techniques are essential to ensure a reliable connection. The PH series is known for its positive locking mechanism, which provides a secure connection and prevents accidental disconnection. The current rating is typically around 2A per contact, and the voltage rating is around 100V AC/DC depending on the specific mating connector.
