Same model may have multiple batches, images only for reference.

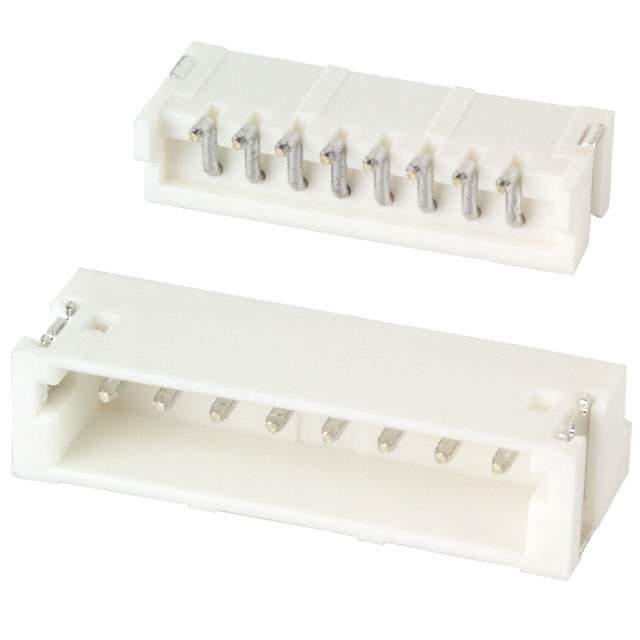

S8B-ZR-SM4A-TF Real Image
Same model may have multiple batches, images only for reference.

S8B-ZR-SM4A-TF

Part No S8B-ZR-SM4A-TF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description 1.5mm pitch/Disconnectable Crimp style connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Uncategorized
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Balance
Win Source Part Number 836473-S8B-ZR-SM4A-TF
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Ultra Librarian 3D Model Ultra Librarian S8B-ZR-SM4A-TF CAD Model

Description

The JST Sales America Inc. 836473-S8B-ZR-SM4A-TF is an electronic component that is used in various electronic applications.

  • Product Type: This product is a connector that is designed to connect two electronic devices together.
  • Materials: It is made of high-quality materials that make it durable and long-lasting.
  • Supply and Demand Status: has a balance supply and demand status
  • Popularity: has a low popularity in the market.
  • Ease of Use: The product is easy to install and use.
