SM03B-SURS-TF(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

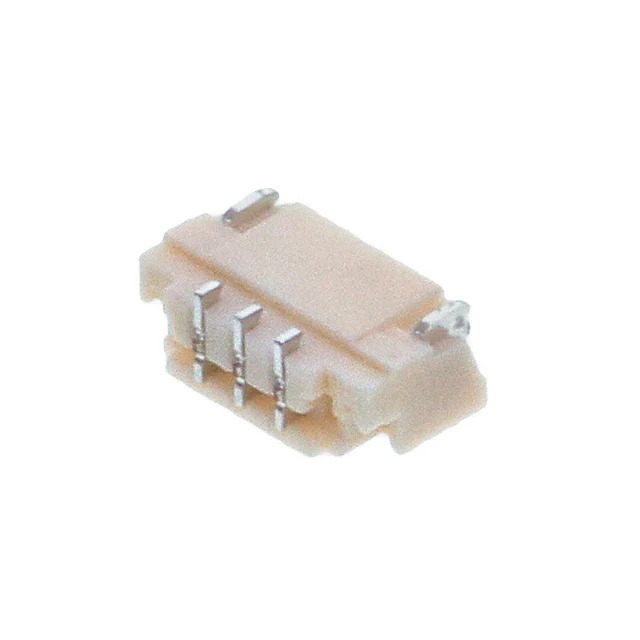

SM03B-SURS-TF(LF)(SN)

Part No SM03B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 3POS 0.8MM / Connector Header Surface Mount, Right Angle 3 position 0.031" (0.80mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SUR
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.031" (0.80mm)
Number of Positions 3
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.2A, 0.5A
Voltage Rating 30V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number SM03B-SU
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362503-SM03B-SURS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM03B-SURS-TF(LF)(SN) CAD Model

Description

The SM03B-SURS-TF(LF)(SN) is a male pin header connector from JST Sales America Inc.

  • Manufacturer: JST Sales America Inc.
  • Product Name: SM03B-SURS-TF(LF)(SN)
  • Positions: 3 positions in 1 row
  • Pitch: 0.031" (0.80mm)
  • Mounting Type: Surface mount, right angle
  • Fastening Type: Push-pull
  • Current Rating: 0.2A and 0.5A
  • Operating Temperature: -25°C to 85°C
  • Application: Board to cable/wire
  • Contact Material: Copper alloy with tin finish
  • Insulation Material: Polyamide (PA) and nylon
  • Voltage: 30V
