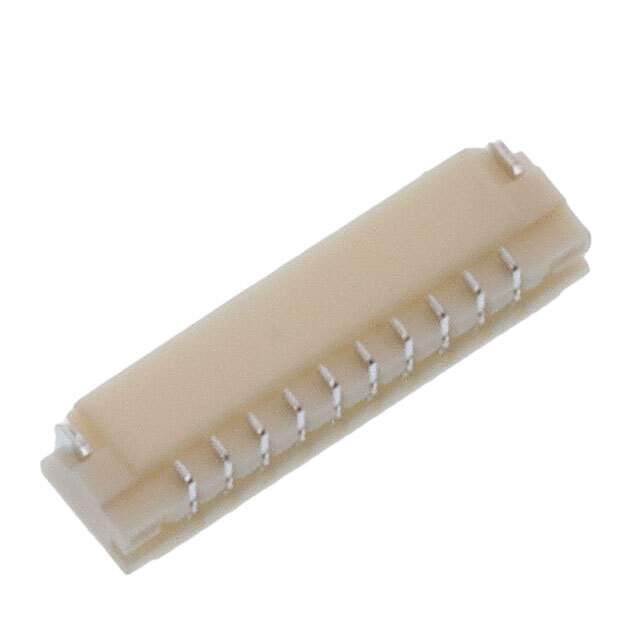

SM10B-XSRS-ETB(LF)(SN) Real Image1 SM10B-XSRS-ETB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
SM10B-XSRS-ETB(LF)(SN) Real Image1 SM10B-XSRS-ETB(LF)(SN) Real Image2
SM10B-XSRS-ETB(LF)(SN) Real Image1 SM10B-XSRS-ETB(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

SM10B-XSRS-ETB(LF)(SN)

Part No SM10B-XSRS-ETB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 10POS 0.6MM / Connector Header Surface Mount, Right Angle position 0.024" (0.60mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XSR
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.024" (0.60mm)
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.057" (1.45mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.2A
Voltage Rating 30V
Applications General Purpose
Base Product Number SM10B-XS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-3944-6,455-3944-2,455-3944-1
Standard Package 3,500
Win Source Part Number 1031296-SM10B-XSRS-ETB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM10B-XSRS-ETB(LF)(SN) CAD Model

Description

The SM10B-XSRS-ETB(LF)(SN) is a shrouded, 4 wall, rectangular connector used for headers and male pins from JST Sales America Inc.

  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Pitch-Mating: 0.024" (0.60mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Mounting Type: Surface Mount, Right Angle
  • Fastening Type: Friction Lock
  • Packaging: Tape & Reel
  • Standard Package: 3,500
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
