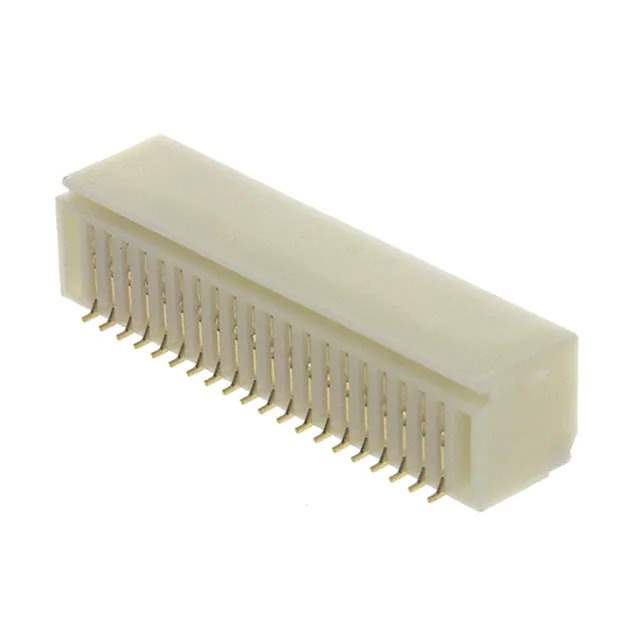

SM40B-SRDS-G-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM40B-SRDS-G-TF(LF)(SN)

Part No SM40B-SRDS-G-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 40POS 1MM / Connector Header Surface Mount, Right Angle 40 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SHD
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 40
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Base Product Number SM40B-SR
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 851348-SM40B-SRDS-G-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM40B-SRDS-G-TF(LF)(SN) CAD Model

Description

The 851348-SM40B-SRDS-G-TF(LF)(SN) is a male pin header connector from the SHD series.

  • Positions: 40
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Application: Board to Cable/Wire
  • Pitch: 0.039" (1.00mm)
  • Contact Finish: Gold
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Shrouded: 4 Walls
  • Insulation Height: 0.217" (5.51mm)
  • Operating Temperature: -25°C to 85°C
  • Product Status: Active
  • Standard Package: 1,250 pcs
