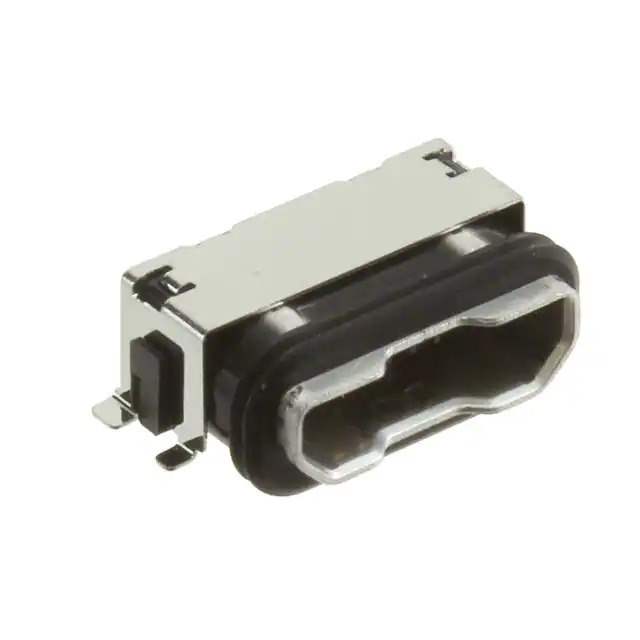

UB-MC5BR3-SDWP604-4S-TF Real Image
Same model may have multiple batches, images only for reference.

UB-MC5BR3-SDWP604-4S-TF

Part No UB-MC5BR3-SDWP604-4S-TF
Manufacturer JST Sales America Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCP MICRO USB B 5POS SMD RA / USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr JST Sales America Inc.
Series UB
Package Tape & Reel
Product Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Ingress Protection Waterproof
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A, 1A, 1.8A
Voltage - Rated 30VAC/DC
Mating Cycles 10000
Shielding Unshielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number UB-MC5BR
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 907633-UB-MC5BR3-SDWP604-4S-TF
Ultra Librarian 3D Model Ultra Librarian UB-MC5BR3-SDWP604-4S-TF CAD Model

Description

The UB series USB connector assemblies are designed for high-speed and reliable connections in electronic applications.

  • Connector Type: USB - micro B
  • Termination Option: Soldering
  • Contact Finish: Gold
  • Manufacturer: JST Sales America Inc.
  • Series: UB-MC5BR3-SDWP604-4S-TF
  • Status: Active
  • ECCN Rating: EAR99
  • HTSUS Code: 8536.69.4040
  • Voltage Rating: 30VAC/DC
  • Temperature Range: -30°C to 85°C
  • Mating Cycle: 10,000
