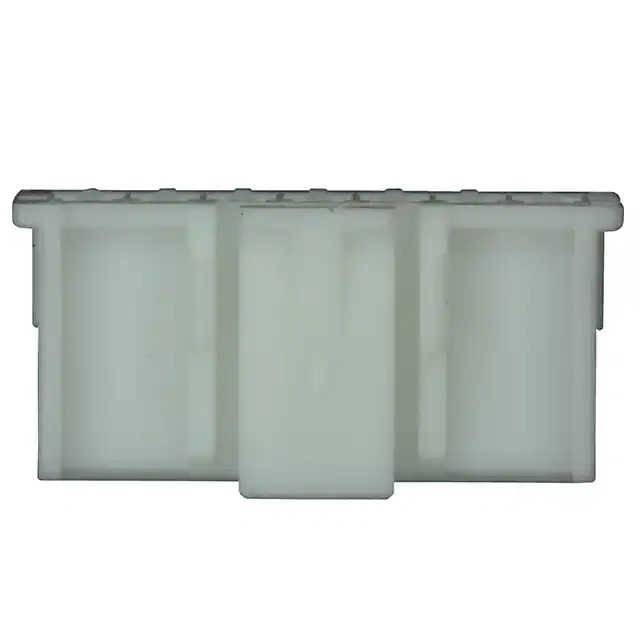

Same model may have multiple batches, images only for reference.

XAP-07V-1

Name: XAP-07V-1
Brand: JST Sales America Inc.
SKU: 1365384
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XAP-07V-1
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 7POS 2.50MM / 7 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	7
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	XAP
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365384-XAP-07V-1
Ultra Librarian 3D Model	Ultra Librarian XAP-07V-1 CAD Model

Alternative Products

Description

The XA series rectangular connector housing from JST Sales America Inc. is a versatile and reliable component for your electronic projects.

Connector Type: Receptacle
Positions: 7
Rows: 1
Mounting: Free Hanging (In-Line)
Fastening: Latch Lock
Pitch: 0.098" (2.50mm)
Color: Natural
Termination: Crimp
Contacts Included: No
Temperature Range: -25°C to 85°C
