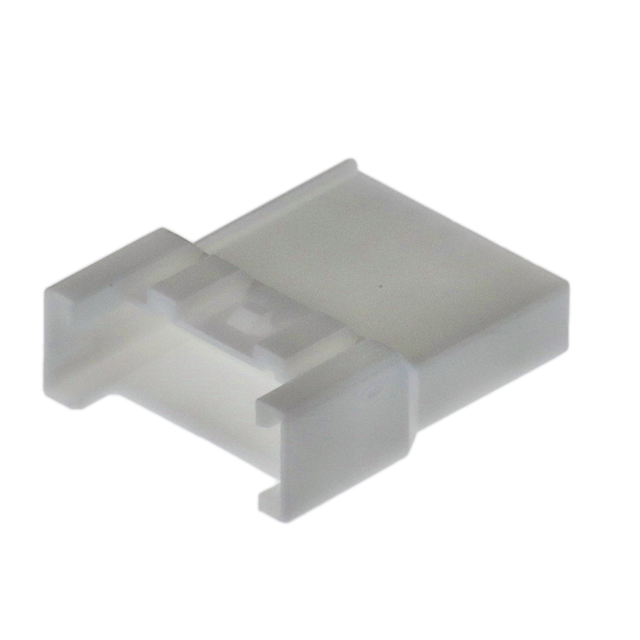

XARR-06VF Real Image
Same model may have multiple batches, images only for reference.

XARR-06VF

Part No XARR-06VF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN XA RECEPT HOUSING 6POS 2.5M / 6 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series XA
Package Bulk
Connector Type Receptacle
Contact Type Male Pin
Number of Positions 6
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Panel Mount
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number XARR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names 455-4163
Standard Package 500
Win Source Part Number 1016245-XARR-06VF
Ultra Librarian 3D Model Ultra Librarian XARR-06VF CAD Model

Description

The XA series 6-position rectangular connector housing is a receptacle type connector with male pin contacts. The latch lock fastening type ensures secure locking of the connector.

  • Series: XA
  • Positions: 6
  • Connector Type: Receptacle
  • Contact Gender: Male Pin
  • Fastening Type: Latch Lock
  • Mounting: Panel
  • Pitch: 0.098 inches (2.50mm)
  • Color: Natural
  • Packaging: Bulk of 500
  • Termination: Crimp
  • Contacts: Not included
