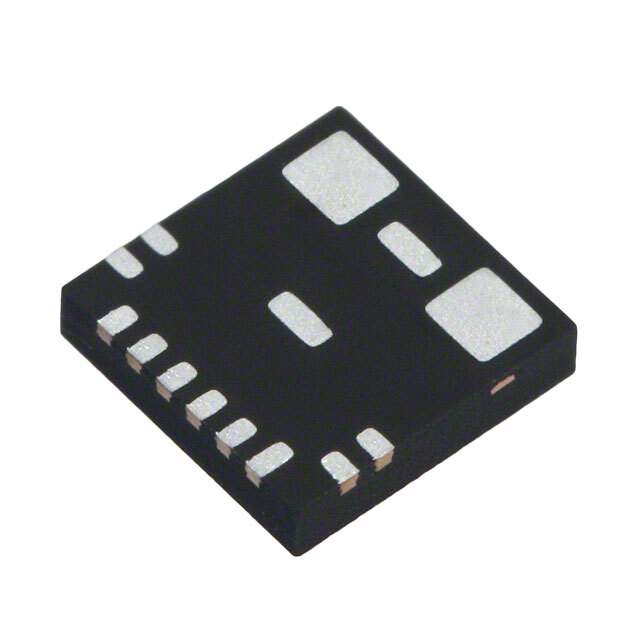

SI8505-B-IM Real Image
Same model may have multiple batches, images only for reference.

SI8505-B-IM

Part No SI8505-B-IM
Manufacturer Skyworks Solutions Inc.
Catalog Current Transducers
Description SENSOR CURRENT XFMR 10A AC / Current Sensor 10A 1 Channel Transformer w/Conditioning Unidirectional 12-VFQFN
Datasheet
SI8505-B-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Skyworks Solutions Inc.
Package Tube
Product Status Obsolete
For Measuring AC
Sensor Type Transformer w/Conditioning
Current - Sensing 10A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 196mV/A
Frequency 50kHz ~ 1MHz
Accuracy ±5%
Voltage - Supply 2.7V ~ 5.5V
Current - Supply (Max) 7mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Unidirectional
Mounting SMD (SMT)
Package / Case 12-VFQFN
Supplier Device Package 12-QFN (4x4)
Other Names 336-1417-5
Standard Package 74
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235487-SI8505-B-IM
Ultra Librarian 3D Model Ultra Librarian SI8505-B-IM CAD Model

Description

The Skyworks Solutions Inc. SI8505-B-IM is a current sensor manufactured by Skyworks Solutions Inc.

  • Sensitivity: 196mV/A
  • Current Sensing: Up to 10A of current
  • Voltage Supply Range: 2.7V to 5.5V
  • Accuracy: ±5%
