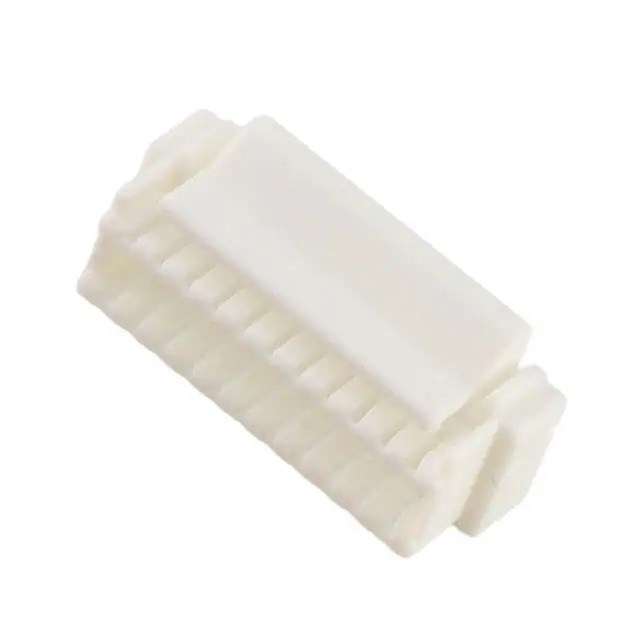

Same model may have multiple batches, images only for reference.

ZPDR-22V-S

Name: ZPDR-22V-S
Brand: JST Sales America Inc.
SKU: 1363472
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ZPDR-22V-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 22POS 1.50MM / 22 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
Datasheet	ZPDR-22V-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	ZPD
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	22
Pitch	0.059" (1.50mm)
Number of Rows	2
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	ZPDR
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1363472-ZPDR-22V-S
Ultra Librarian 3D Model	Ultra Librarian ZPDR-22V-S CAD Model

Alternative Products

Description

The JST Sales America Inc. 1363472-ZPDR-22V-S is a rectangular connector housing from JST Sales America Inc..

Series: ZPD
Package: Bulk
Mounting Type: Free Hanging (In-Line)
Number of Positions: 22
Number of Rows: 2
Pitch: 0.059" (1.50mm)
Temperature Range: -25°C to 85°C
Color: Natural
Product Status: Active
