CKG57NX7S2A226M500JJ TDK Corporation
Same model may have multiple batches, images only for reference.

CKG57NX7S2A226M500JJ

Part No CKG57NX7S2A226M500JJ
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Multilayer Ceramic Chip Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series MEGACAP, CKG
Packaging Reel - TR
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 100V
Temperature Coefficient X7S
Operating Temperature Range -55°C ~ 125°C
Features Low ESL (Stacked)
Ratings AEC-Q200
Applications Automotive, SMPS Filtering, Bypass, Decoupling
Mounting Surface Mount, MLCC
Package Stacked SMD, 2 J-Lead
Size 0.236" L x 0.197" W (6.00mm x 5.00mm)
Thickness (Maximum) 0.217" (5.50mm)
Lead Style J-Lead
Manufacturer Homepage www.tdk.com
Win Source Part Number 737666-CKG57NX7S2A226M500JJ
Popularity Medium
Supply and Demand Status Limited
Family Name CKG57
Introduction Date June 27, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CKG57NX7S2A226M500JJ CAD Model

Description

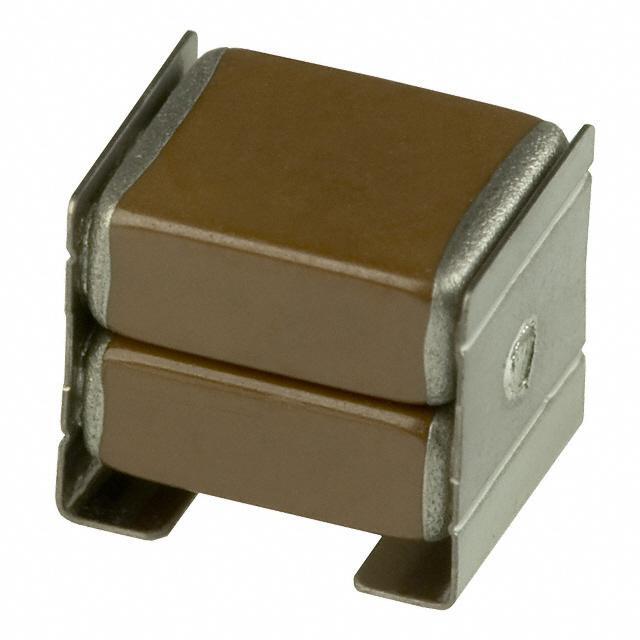

The TDK Corporation's MEGACAP CKG series is a stacked SMD capacitor with 2 J-Leads.

  • Application: Automotive, SMPS filtering, bypass, and decoupling
  • Model: CKG57NX7S2A226M500JJ
  • Capacitance: 22μF
  • Tolerance: ±20%
  • Temperature Coefficient: X7S
  • Voltage Rating DC: 100V
  • AEC-Q200 Qualified: Yes
  • Feature: Low ESL (Stacked)
  • Halogen-Free Compliant: Yes
  • Mounting Technology: Surface Mount (SMT)
  • Size: 0.236" L x 0.197" W (6.00mm x 5.00mm)
  • Operating Temperature Range: -55°C to 125°C
  • Estimated End-of-Life Date: 2028
