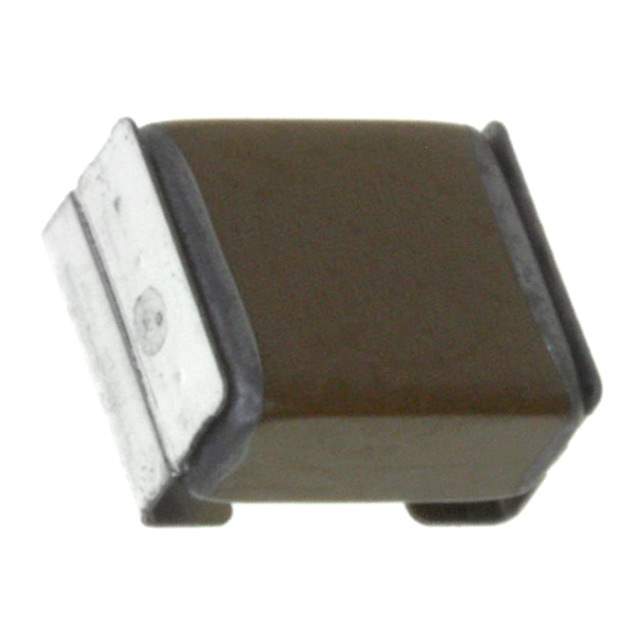

The CKG57NX5R1E476MT0S9W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for general-purpose applications, primarily for decoupling and bypass functionalities in various electronic circuits. Its construction and materials are selected to ensure stable capacitance and reliable operation under diverse environmental conditions.

Applications

• Decoupling: Stabilizing the voltage supply to integrated circuits (ICs) by providing a local source of charge, thereby minimizing voltage fluctuations and noise.
• Bypass: Shunting high-frequency noise to ground, preventing it from interfering with other sensitive components in the circuit.
• Filtering: Smoothing out voltage variations in power supplies and other circuits by storing and releasing charge as needed.
• General Purpose: Suitable for a wide range of applications requiring stable and reliable capacitance.

Features

• Capacitance Value: 47µF (microfarads), suitable for applications requiring significant charge storage.
• Voltage Rating: Rated for 25V, making it appropriate for low-voltage electronic circuits.
• X5R Dielectric: X5R dielectric provides good capacitance stability over a wide temperature range.
• Surface Mount Device (SMD): Designed for automated assembly on printed circuit boards (PCBs).
• RoHS Compliant: Complies with Restriction of Hazardous Substances (RoHS) directive.

Benefits

• Improved Circuit Performance: Provides stable voltage and reduces noise, enhancing the performance and reliability of electronic circuits.
• Effective Noise Reduction: Filters out high-frequency noise, ensuring signal integrity and preventing interference.
• Compact Design: The small size of the capacitor allows for high-density circuit designs.
• Wide Operating Temperature Range: Operates reliably over a wide temperature range, making it suitable for various environmental conditions.
• Environmentally Friendly: Complies with RoHS regulations, minimizing environmental impact.

Technical Specifications

• Capacitance: 47µF
• Capacitance Tolerance: ±20%
• Voltage Rating: 25V
• Dielectric Material: X5R
• Operating Temperature Range: -55°C to +85°C (Typical for X5R dielectric)
• Termination: Surface Mount (SMD)
• Size: Package size will be according to EIA standard, like 1210, 1812, etc. Check the specific datasheet for exact dimensions.

Important Note: Always refer to the official TDK datasheet for the most accurate and detailed technical specifications and application guidelines.
