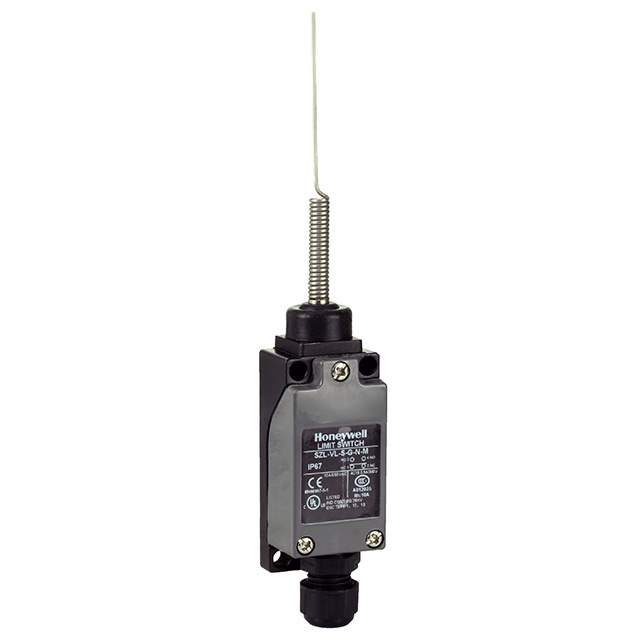

SZL-VL-S-G-N-M Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-S-G-N-M

Part No SZL-VL-S-G-N-M
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 500MA 380V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-S-G-N-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL-S
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 500mA (AC), 50mA (DC)
Voltage Rating - AC 380 V
Voltage Rating - DC 220 V
Actuator Type Spring, Wire
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 204gf
Pretravel 30°
Overtravel 20°
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-VL
Other Names 480-7075
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233645-SZL-VL-S-G-N-M
Ultra Librarian 3D Model Ultra Librarian SZL-VL-S-G-N-M CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1233645-SZL-VL-S-G-N-M limit switch is a high-quality switch that is perfect for use in a variety of applications.

  • Termination Style: Cable gland
  • Ingress Protection: IP67 rated, making it dust tight and waterproof
  • Voltage Rating: 380 V AC and 220 V DC
  • Circuit: SPDT (DB/DM)
  • Switch Function: on-mom
  • Actuator Type: Spring, wire
  • Electrical Life: 500,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Mounting: Chassis mount
  • Temperature Range: -20°C to 70°C
