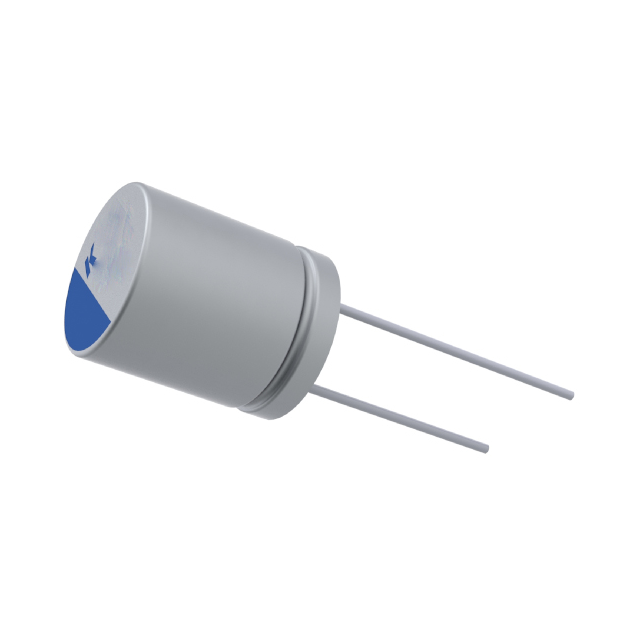

A759EK107M1CAAE018 Real Image
Same model may have multiple batches, images only for reference.

A759EK107M1CAAE018

Part No A759EK107M1CAAE018
Manufacturer Kemet
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 16V T/H / 100 µF 16 V Aluminum - Polymer Capacitors Radial, Can 18mOhm 2000 Hrs @ 125°C
Datasheet
A759EK107M1CAAE018 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr KEMET
Series A759
Package Bulk
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 18mOhm
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 95.15 mA @ 120 Hz
Ripple Current @ High Frequency 1.903 A @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.354" (9.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number A759EK
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339522-A759EK107M1CAAE018
Ultra Librarian 3D Model Ultra Librarian A759EK107M1CAAE018 CAD Model

Description

The A759EK107M1CAAE018 is a polymer capacitor from KEMET, designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 18mOhm
  • Lifetime: 2000 hours @ 125°C
  • Ripple Current: 95.15 mA @ 120 Hz and 1.903 A @ 100 kHz
  • Package: radial, can
  • Diameter: 0.248 inches
  • Height: 0.354 inches
  • Lead Spacing: 0.098 inches
  • Mounting: through hole
  • Operating Temperature Range: from -55°C to 125°C
