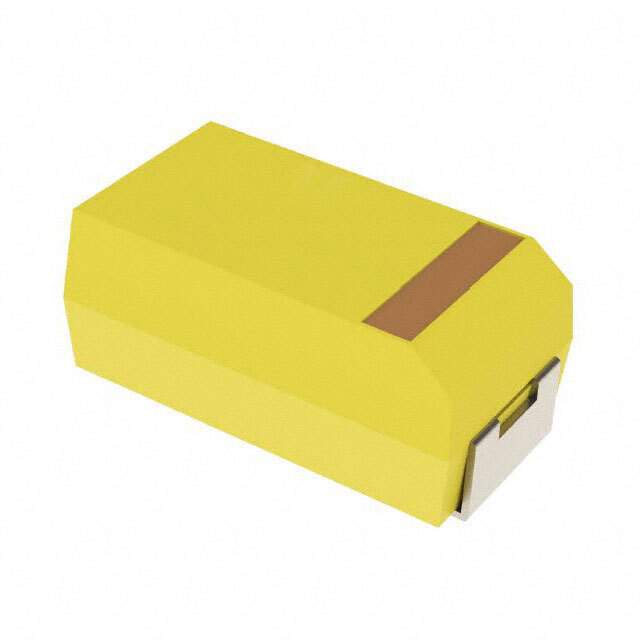

B45196H5226K409 Real Image
Same model may have multiple batches, images only for reference.

B45196H5226K409

Part No B45196H5226K409
Manufacturer Kemet
Catalog Tantalum Capacitors
Description Cap Tant 22UF 25V 10% 2917
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 22 µF
Mounting SMD (SMT)
Case / Package 2917
Case Code (Imperial) 2917
Case / Package 7343
Depth 4.3 mm
Dissipation Factor 6 %
ESR (Equivalent Series Resistance) 800 mΩ
Height 3.1 mm
Lead Free Yes
Leakage Current 5.5 µA
Length 7.3 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Packaging Tape and Reel
Polarity Polar
RoHS Compliant
Termination SMD/SMT
Tolerance 10 %
Voltage Rating 25 V
Voltage Rating (DC) 25 V
Weight 670.01263 mg
Width 4.3 mm
Win Source Part Number 997072-B45196H5226K409
Categories Tantalum Capacitors
Manufacturer Kemet
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B45196H5226K409 CAD Model

Description

The Kemet B45196H5226K409 is a surface mountable tantalum capacitor that has a capacitance of 22 μF and a voltage rating of 25 V.

  • Capacitance: 22 μF
  • Voltage Rating: 25 V
  • Temperature Range: -55°C to 125°C
  • Tolerance: 10%
  • Packaging: Tape and Reel
  • Estimated Production Lead Time: 0 weeks
  • RoHS: Compliant
  • Lead-Free: Yes
