Same model may have multiple batches, images only for reference.

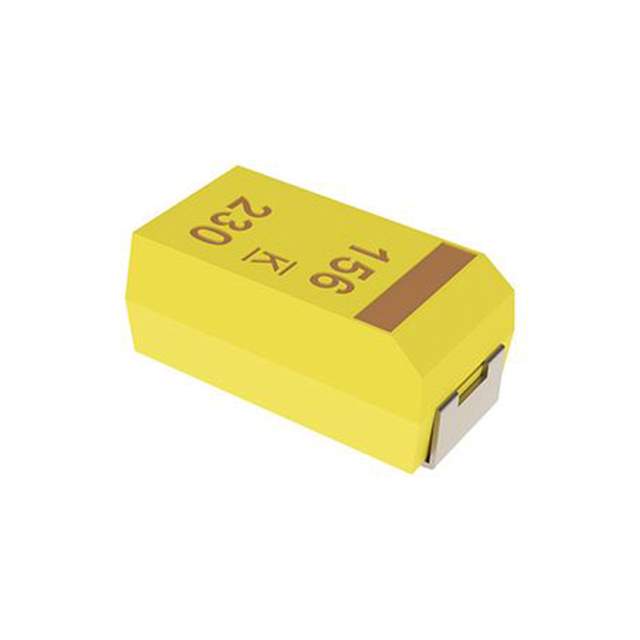

B45197A4226K409 Real Image
Same model may have multiple batches, images only for reference.

B45197A4226K409

Part No B45197A4226K409
Manufacturer Kemet
Catalog Tantalum Capacitors
Description Cap Tant 22UF 20V 10% 2917
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Supply and Demand Status Limited
Popularity Medium
Manufacturer Kemet
Categories Tantalum Capacitors
Win Source Part Number 1171208-B45197A4226K409
Width 4.3 mm
Voltage Rating (DC) 20 V
Voltage Rating 20 V
Tolerance 10 %
Termination SMD/SMT
RoHS Compliant
Min Operating Temperature -55 °C
Max Operating Temperature 125 °C
Length 7.3 mm
Leakage Current 4.4 µA
Lead Free Lead Free
Height 3.1 mm
ESR (Equivalent Series Resistance) 200 mΩ
Dissipation Factor 6 %
Case Code (Metric) 7343
Case Code (Imperial) 2917
Case / Package 2917
Capacitance 22 µF
Ultra Librarian 3D Model Ultra Librarian B45197A4226K409 CAD Model

Description

The Kemet B45197A4226K409 is a surface mount tantalum capacitor with a voltage rating of 20 V and capacitance of 22 µF.

  • Type: surface mount tantalum capacitor
  • Voltage Rating: 20 V
  • Capacitance: 22 µF
  • Tolerance: 10%
  • ESR: 200 mΩ
  • Leakage Current: 4.4 µA
  • Dissipation Factor: 6%
  • Dimensions: 7.3 mm (L), 4.3 mm (W), 3.1 mm (H)
  • Case Package: 2917
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Operating Temperature Range: -55 °C to 125 °C
