Same model may have multiple batches, images only for reference.

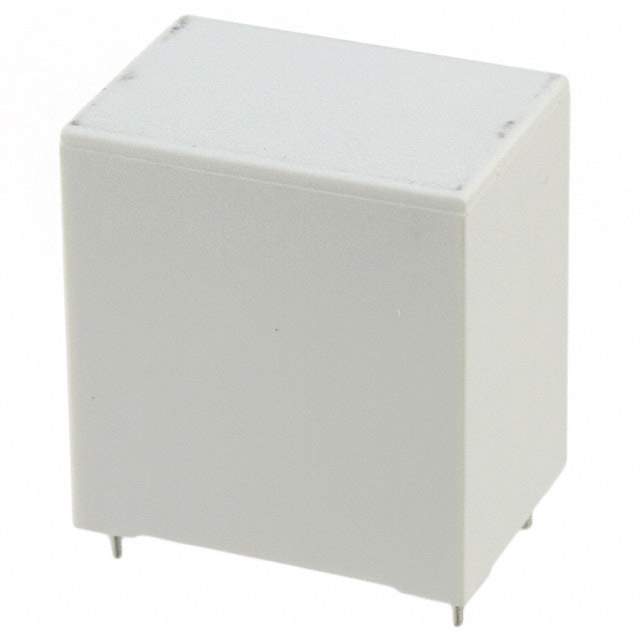

C4AEJBW5300A3LJ Real Image
Same model may have multiple batches, images only for reference.

C4AEJBW5300A3LJ

Part No C4AEJBW5300A3LJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 30UF 5% 700VDC RADIAL  /  30 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AEJBW5300A3LJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series C4AE
Package Bulk
Capacitance 30 µF
Tolerance ±5%
Voltage Rating - DC 700V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3.2 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Dimension 1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching
Base Product Number C4AEJB
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 4AEJBW5300A3LJ,399-5946
Standard Package 36
Win Source Part Number 1009587-C4AEJBW5300A3LJ
Ultra Librarian 3D Model Ultra Librarian C4AEJBW5300A3LJ CAD Model

Description

The Kemet 1009587-C4AEJBW5300A3LJ is a film capacitor with a capacitance of 30 µF and a tolerance of ±5%.

  • Manufacturer: Kemet
  • Part Number: 1009587-C4AEJBW5300A3LJ
  • Capacitance: 30 µF
  • Tolerance: ±5%
  • Voltage Rating: 700V
  • Temperature Range: -40°C to 85°C
  • Termination Style: PC pins
  • Mounting Technology: Through-hole
  • Package/Case: Radial-4 leads
  • Dimension: 1.654 inches L x 1.181 inches W (42.00mm x 30.00mm)
  • Application: DC link, DC filtering, high frequency, and switching applications
  • Alternative to: 4AEJBW5300A3LJ and 399-5946
