Same model may have multiple batches, images only for reference.

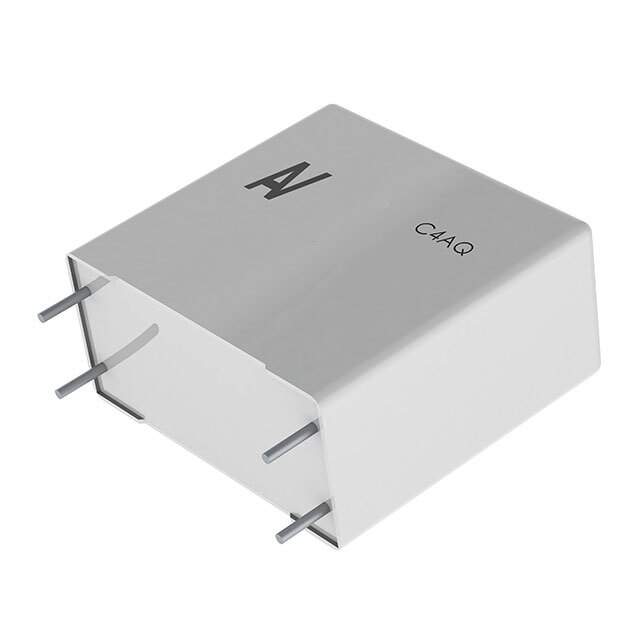

C4AQLBW5540M3HK Real Image
Same model may have multiple batches, images only for reference.

C4AQLBW5540M3HK

Part No C4AQLBW5540M3HK
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 54UF 10% 500VDC RADIAL / 54 µF Film Capacitor 500V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AQLBW5540M3HK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ-M
Package Bulk
Capacitance 54 µF
Tolerance ±10%
Voltage Rating - DC 500V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 2.6 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max) 1.740" (44.20mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Features Low ESL
Base Product Number C4AQLB
Standard Package 44
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1338955-C4AQLBW5540M3HK
Ultra Librarian 3D Model Ultra Librarian C4AQLBW5540M3HK CAD Model

Description

The KEMET C4AQ-M series film capacitor is a high-quality component that is ideal for use in automotive, DC link, and DC filtering applications.

  • Voltage Rating: 500V DC
  • Capacitance: 54 µF
  • Tolerance: ±10%
  • ESR: 2.6 mOhms
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Mounting Type: Through Hole
  • Package/Case: Radial-4 Leads
  • Operating Temperature: -55°C to 105°C
  • Packaging: Bulk
  • Standard Package: 44
