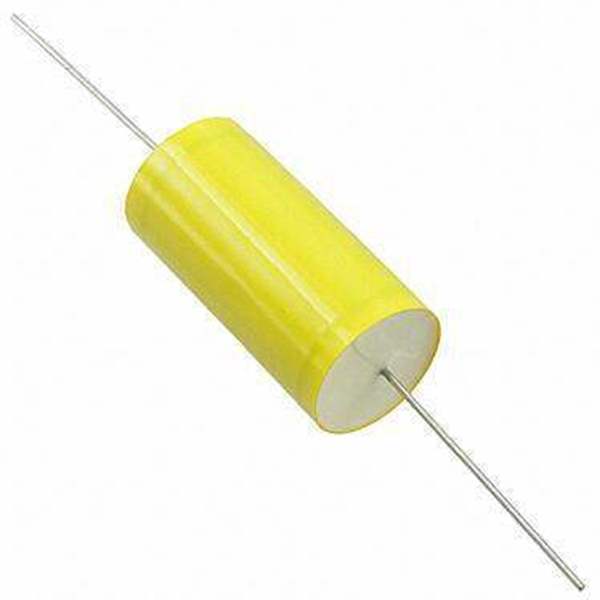

C4CAWUD3560AA3JKEMET
Same model may have multiple batches, images only for reference.

C4CAWUD3560AA3J

Part No C4CAWUD3560AA3J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.56UF 5% 2KVDC AXIAL
Datasheet
C4CAWUD3560AA3J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306634-C4CAWUD3560AA3J
Size / Dimension 1.142" Dia x 2.283" L (29.00mm x 58.00mm)
Mounting Type Through Hole
Operating Temperature -40°C ~ 85°C
ESR (Equivalent Series Resistance) 6.1 mOhms
Voltage Rating - DC 2000V (2kV)
Voltage Rating - AC 630V
Tolerance ±5%
Capacitance 0.56 µF
Part Status Active
Packaging  Bulk
Category Capacitors Film Capacitors
Manufacturer KEMET
Ultra Librarian 3D Model Ultra Librarian C4CAWUD3560AA3J CAD Model

Description

0.56 µF Film Capacitor 630V 2000V (2kV) Polypropylene (PP), Metallized Axial
