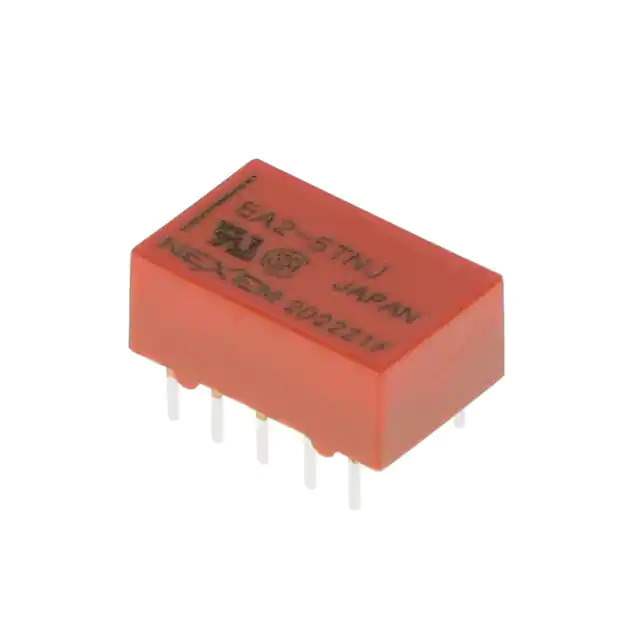

EA2-5TNJ

Name: EA2-5TNJ
Brand: Kemet
SKU: 917752
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	EA2-5TNJ
Manufacturer	Kemet
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY / General Purpose Relay DPDT (2 Form C) Through Hole
Datasheet	EA2-5TNJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Signal Relays, Up to 2 Amps
Mfr	KEMET
Series	EA2
Package	Tube
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1 A
Switching Voltage	250VAC, 220VDC - Max
Coil Current	28.1 mA
Coil Type	Latching, Dual Coil
Termination Style	PC Pin
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.5 VDC
Operate Time	2 ms
Release Time	1 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Alloy, Gold Alloy
Relay Type	General Purpose
Coil Resistance	178 Ohms
Standard Package	3,600 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	917752-EA2-5TNJ
Ultra Librarian 3D Model	Ultra Librarian EA2-5TNJ CAD Model

Alternative Products

Description

The EA2 series signal relay is a versatile component suitable for various applications requiring up to 2 amps of current.

Manufacturer: KEMET
Product: EA2
Series: EA2
Contact Form: DPDT (2 Form C)
Contact Material: Silver Alloy and Gold Alloy
Coil Voltage: 5VDC
Coil Resistance: 178 Ohms
Contact Rating: 1A
Switching Voltage: 250VAC and 220VDC maximum
Mounting: Through-Hole
Temperature Range: -40°C to 85°C
Type: Latching, Dual Coil
Status: Active
