Same model may have multiple batches, images only for reference.

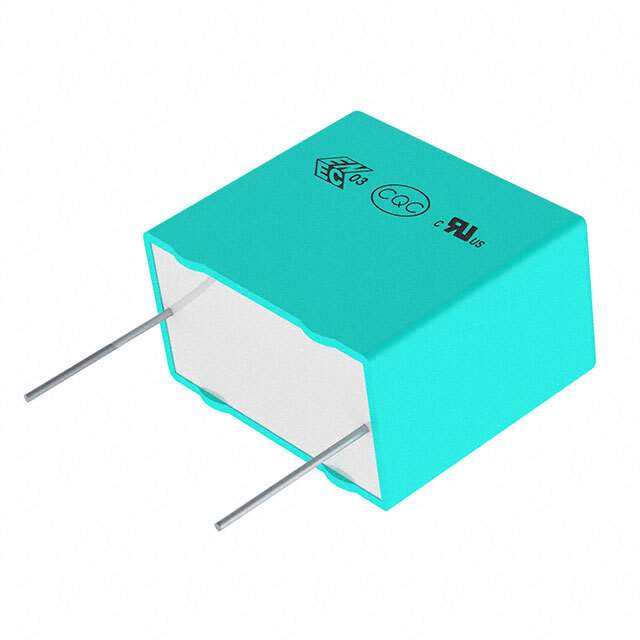

F862BZ564K310Z Real Image
Same model may have multiple batches, images only for reference.

F862BZ564K310Z

Part No F862BZ564K310Z
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.56UF 10% 630VDC RAD / 0.56 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
Datasheet
F862BZ564K310Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series F862
Package Tray
Capacitance 0.56 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.472" W (18.00mm x 12.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings X2
Base Product Number F862BZ
Standard Package 459
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
California Prop 65 Warning Information
Win Source Part Number 1338343-F862BZ564K310Z
Ultra Librarian 3D Model Ultra Librarian F862BZ564K310Z CAD Model

Description

The Kemet F862BZ564K310Z capacitor is a film capacitor that belongs to the F862 series.

  • Manufacturer: Kemet
  • Series: F862
  • Capacitance: 0.56 μF
  • Tolerance: ±10%
  • Voltage Rating: 310V AC and 630V DC
  • Application: EMI and RFI Suppression
  • Mounting Type: Through-Hole
  • Size: 0.709" L x 0.472" W (18.00mm x 12.00mm)
  • Height: 0.787" (20.00mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Packaging: Tray
  • REACH: Unaffected
