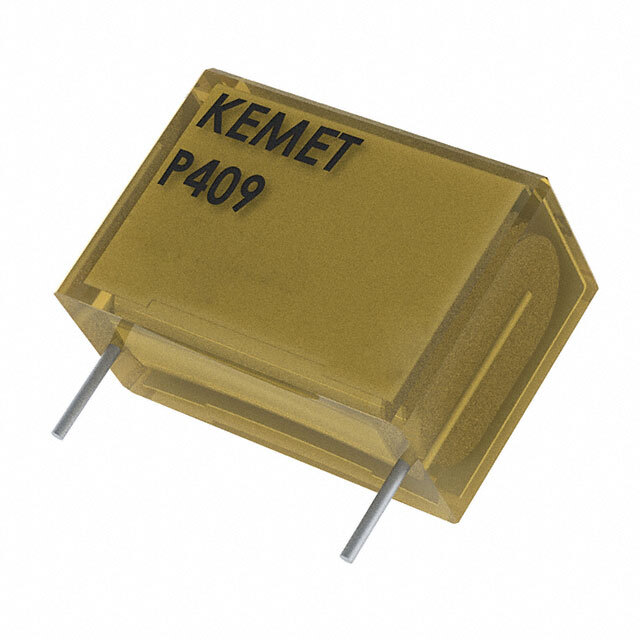

Same model may have multiple batches, images only for reference.
PHE426PD6100JR06L2 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE426PD6100JR06L2

Part No PHE426PD6100JR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 5% 1KVDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 0.1 µF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 1.024" L x 0.354" W (26.00mm x 9.00mm)
Height - Seated (Max) 0.728" (18.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1521539-PHE426PD6100JR06L2
Ultra Librarian 3D Model Ultra Librarian PHE426PD6100JR06L2 CAD Model
