Same model may have multiple batches, images only for reference.

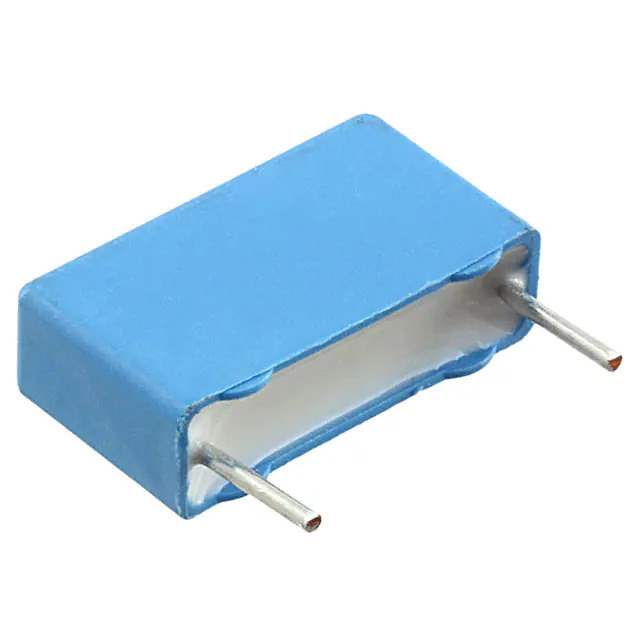

PHE448SB4150JR06 Real Image
Same model may have multiple batches, images only for reference.

PHE448SB4150JR06

Part No PHE448SB4150JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1500PF 5% 2KVDC RAD
Datasheet
PHE448SB4150JR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE448
Package Bulk
Product Status Active
Capacitance 1500 pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications General Purpose
Base Product Number PHE448
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 273969-PHE448SB4150JR06
Ultra Librarian 3D Model Ultra Librarian PHE448SB4150JR06 CAD Model

Description

The PHE448SB4150JR06 is a film capacitor from KEMET's PHE448 series.

  • Type: General-Purpose Capacitor
  • Capacitance: 1500 pF
  • Tolerance: ±5%
  • Voltage Rating (AC): 700V
  • Voltage Rating (DC): 2000V
  • Termination: PC Pins
  • Mounting: Through-Hole
  • Package Size: 0.709" L x 0.256" W (18.00mm x 6.50mm)
  • Seated Height: 0.492" (12.50mm)
  • Operating Temperature Range: -55°C to 105°C
  • Packaging: Bulk
  • Standard Package: 1,000 pcs
  • Dielectric Material: Polypropylene (PP)
  • Status: Active
