Same model may have multiple batches, images only for reference.

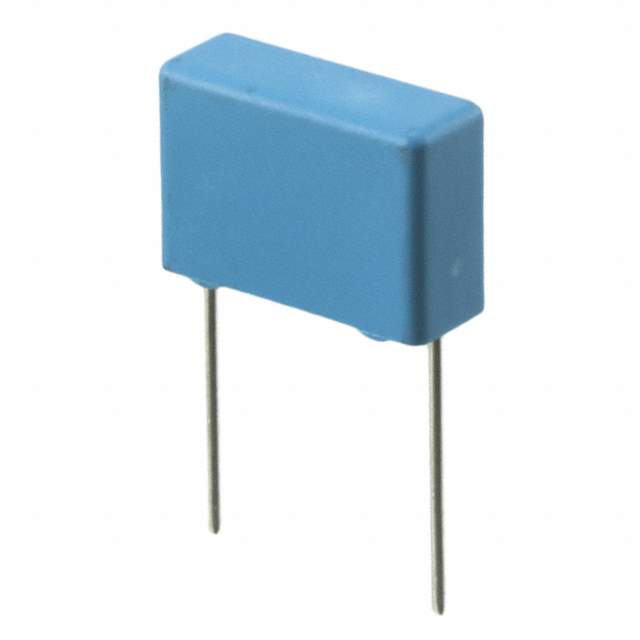

PHE840MB6150KB10R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MB6150KB10R17

Part No PHE840MB6150KB10R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.15UF 10% 760VDC RAD
Datasheet
PHE840MB6150KB10R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.15μF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209913-PHE840MB6150KB10R17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MB6150KB10R17 CAD Model

Description

The Kemet 209913-PHE840MB6150KB10R17 is a bulk packaged X2 safety rated capacitor.

  • Termination: has PC pins for termination
  • Voltage Rating: 275V AC and 760V DC
  • Application: ideal for EMI and RFI suppression applications
  • Capacitance: 0.15μF
  • Tolerance: ±10%
  • Lead Spacing: 0.591"
  • Dielectric Material: polypropylene (PP), metallized
  • Operating Temperature: operates in a temperature range of -55°C to 105°C
  • Dimension: 0.709" L x 0.256" W (18.00mm x 6.50mm)
