Same model may have multiple batches, images only for reference.

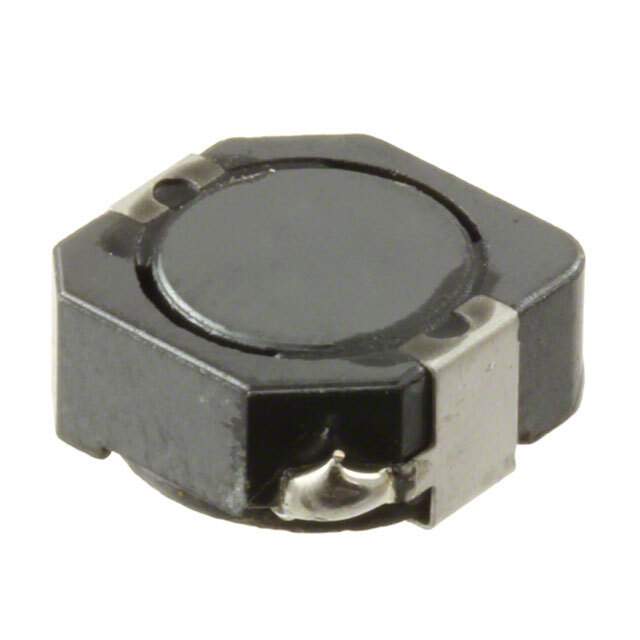

CDRH105RNP-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH105RNP-220NC

Part No CDRH105RNP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.9A 61 MOHM SMD
Datasheet
CDRH105RNP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 22μH
Tolerance ±30%
Current Rating 2.9A
Current - Saturation 2.95A
DC Resistance (DCR) 61 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.201" (5.10mm)
Win Source Part Number 013050-CDRH105RNP-220NC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH105RNP-220NC CAD Model

Description

Features and Benefits

  • High current handling
  • Low core losses
  • Excellent dimensional stability?

Applications

  • Networking equipment
  • High-reliability power circuits
  • Computer peripherals

Designed for resilience under high current scenarios, the CDRH105RNP-220NC provides the reliability and efficiency necessary for critical electronic applications.
