Same model may have multiple batches, images only for reference.

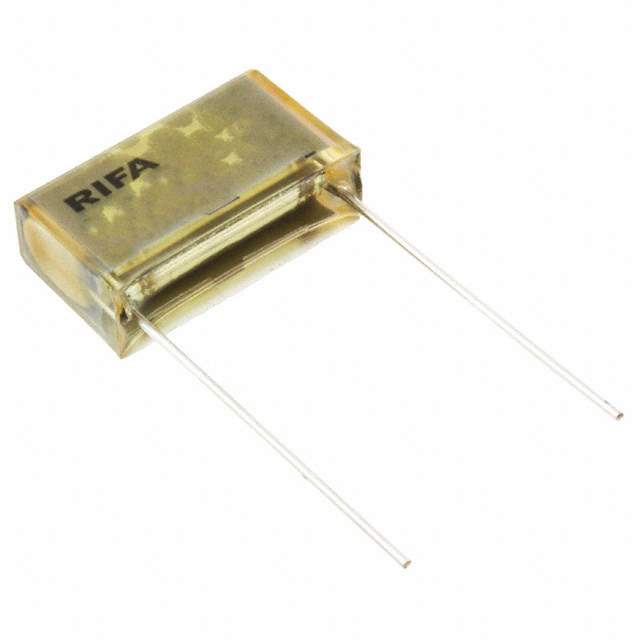

PMR209MC6100M022R30 Real Image
Same model may have multiple batches, images only for reference.

PMR209MC6100M022R30

Part No PMR209MC6100M022R30
Manufacturer Kemet
Catalog Film Capacitors
Description 100nF 22Ohms 250 V ac; 630 V dc RC Network Capacitor 1-Way Through Hole PMR209
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 100 nF
Mounting SMD (SMT)
Case / Package Radial
Depth 7.6 mm
Dielectric Material Paper
Height 14 mm
Height - Seated (Max) 13.9954 mm
Insulation Resistance 3 GΩ
Lead Diameter 800 µm
Lead Length 30 mm
Lead Pitch 20.3 mm
Length 24 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Elements 1
Number of Terminals 2
Packaging Bulk
Pitch 20.3 mm
Radiation Hardening No
REACH SVHC No SVHC
Resistance 22 Ω
RoHS Compliant
Series Resistance 22 Ω
Terminal Pitch 20.3 mm
Termination Radial
Tolerance 20 %
Voltage 630 V
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Width 7.6 mm
Win Source Part Number 1073357-PMR209MC6100M022R30
Categories Film Capacitors
Manufacturer Kemet
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PMR209MC6100M022R30 CAD Model

Description

The PMR209MC6100M022R30 is a film capacitor manufactured by Kemet.

  • Popularity: Low
  • Supply and Demand Status: Shortage
  • Description: This component is designed to provide excellent performance and reliability. It is a high-quality component that is ideal for use in a wide range of electronic devices. It is a versatile component that can be used in various applications. The PMR209MC6100M022R30 is an excellent choice for those looking for a reliable and high-performance film capacitor.
