Same model may have multiple batches, images only for reference.

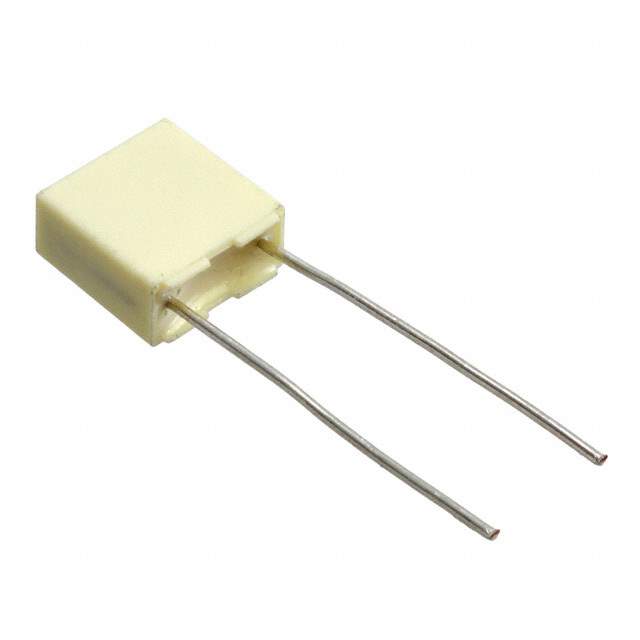

R82EC1220DQ50J Real Image
Same model may have multiple batches, images only for reference.

R82EC1220DQ50J

Part No R82EC1220DQ50J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2200PF 5% 100VDC RADIAL  /  2200 pF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Datasheet
R82EC1220DQ50J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R82
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 2200 pF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications Automotive
Ratings AEC-Q200
Base Product Number R82EC
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-9692-1,399-9692-3,399-9692,82EC1220DQ50J,399-9692-ND
Standard Package 3,500
Win Source Part Number 1008837-R82EC1220DQ50J
Ultra Librarian 3D Model Ultra Librarian R82EC1220DQ50J CAD Model

Description

The Kemet R82EC1220DQ50J is a radial film capacitor with a capacitance of 2200 pF and a voltage rating of 63V (AC) and 100V (DC).

  • Capacitance: 2200 pF
  • Voltage Rating: 63V (AC), 100V (DC)
  • Tolerance: ±5%
  • Family: Film Capacitors
  • Package / Case: Radial
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height: 0.256" (6.50mm)
  • Dimension: 0.283" L x 0.098" W (7.20mm x 2.50mm)
  • Application: Automotive
  • Lead Free: Yes
  • RoHS Compliant: Yes
  • AEC-Q200: Yes
