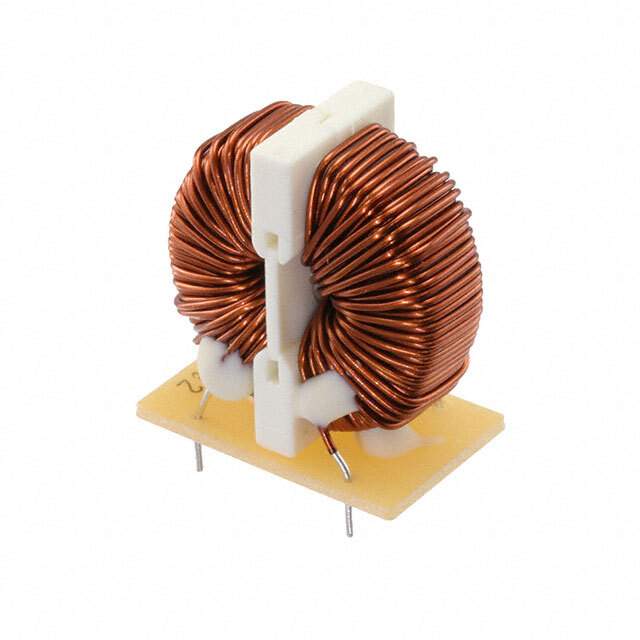

SC-02-05GJ Real Image
Same model may have multiple batches, images only for reference.

SC-02-05GJ

Part No SC-02-05GJ
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 515 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 58mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.689" L x 0.689" W (17.50mm x 17.50mm)
Height (Max) 0.768" (19.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names 399-SC-02-05GJ,UALSC0205GJ000
Standard Package 330
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276951-SC-02-05GJ
Ultra Librarian 3D Model Ultra Librarian SC-02-05GJ CAD Model

Description

The KEMET electronic component with Win Source Part Number 1276951-SC-02-05GJ is a power line filter with a maximum current rating of 2A.

  • Voltage Rating: 250V AC and DC
  • Inductance: 515 µH @ 100 kHz
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC Pin
  • Temperature Range: 25°C to 120°C
