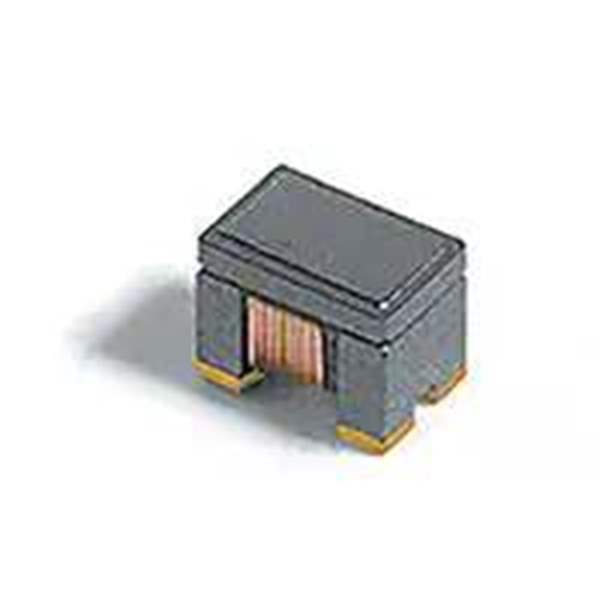

0805USB-262MLC Real Image
Same model may have multiple batches, images only for reference.

0805USB-262MLC

Part No 0805USB-262MLC
Manufacturer Coilcraft
Catalog Common Mode Chokes
Description CMC 147NH 500MA 2LN 820 OHM SMD
Datasheet
0805USB-262MLC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr COILCRAFT
Series 0805USB
Package Strip
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 820 Ohms @ 1.8 GHz
Inductance @ Frequency 147 nH @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 260mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height (Max) 0.065" (1.65mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 2355-0805USB-262MLC
Ultra Librarian 3D Model Ultra Librarian 0805USB-262MLC CAD Model

Description

0805USB-262MLC

The 0805USB-262MLC is a sophisticated surface-mount device crafted to maximize data transfer efficiency and power management in USB connections.

  • Applications:
    • Data transfer peripherals
    • Fast-charging USB devices
    • Computer accessories
    • Smart home systems
  • Features and Benefits:
    • Enhanced speed and stability for high-performance USB applications
    • Compact 0805 design fits seamlessly into space-constrained PCBs
    • Built with advanced ESD protection
    • Ideal choice for high-data-rate requirement circuits
  • Additional Details: Compatible with a variety of operating systems, ensuring ease of integration into existing setups.
