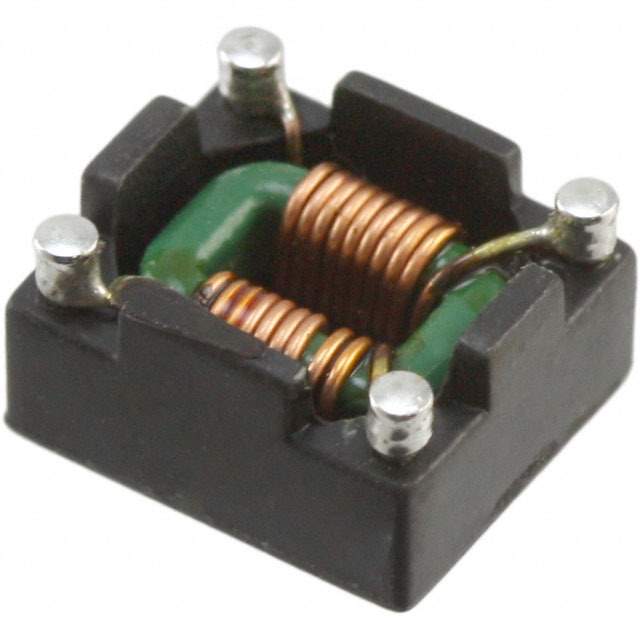

744273102 Real Image
Same model may have multiple batches, images only for reference.

744273102

Part No 744273102
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 11UH 2.5A 2LN 1K OHM SMD / 11 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1 kOhms @ 100 MHz 2.5A DCR 30mOhm
Datasheet
744273102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL5 HC
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhms @ 100 MHz
Inductance @ Frequency 11 µH @ 100 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 30mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857315-744273102
Ultra Librarian 3D Model Ultra Librarian 744273102 CAD Model

Description

The 744273102 is a common mode choke designed for signal line filtering manufactured by Wurth Electronics Inc.

  • Series: WE-SL5 HC
  • Voltage Rating: 80V DC
  • Current Rating: 2.5A
  • Size: 0.374" L x 0.327" W (9.50mm x 8.30mm)
  • Height: 0.209" (5.30mm)
  • Lines: Two
  • Impedance: 1 kOhms @ 100 MHz
  • Inductance: 11 µH @ 100 kHz
  • DC Resistance (DCR): 30mOhm maximum
  • Mounting: Surface mount
  • Package: Horizontal, 4 PC pad
  • Operating Temperature Range: -40°C to 125°C
  • Packaging: Tape and reel
  • Package Quantity: 1,000 pcs
  • Status: Active
