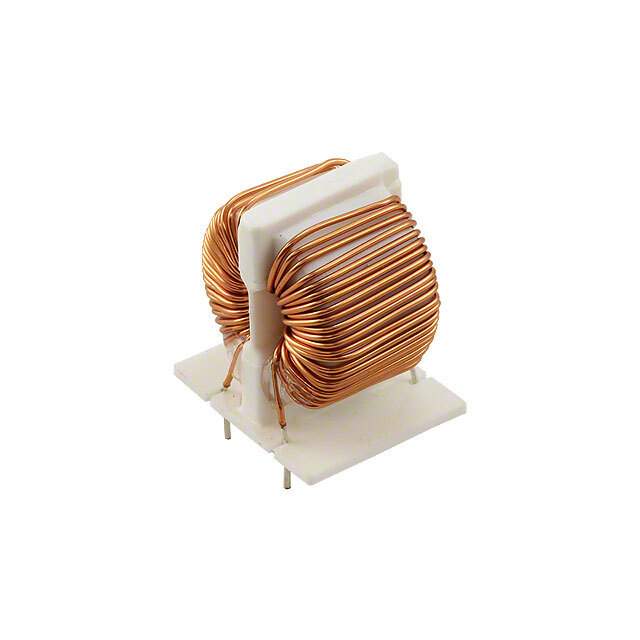

SC-02-20J Real Image
Same model may have multiple batches, images only for reference.

SC-02-20J

Part No SC-02-20J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -20°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names UALSC0220J0000,399-10648
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277064-SC-02-20J
Ultra Librarian 3D Model Ultra Librarian SC-02-20J CAD Model

Description

The KEMET SC-02-20J is a common mode choke that is ideal for power line filtering.

  • Voltage Rating: 250VAC and 250VDC
  • Maximum Current Rating: 2A
  • Package: Vertical, 4 PC pin
  • Mounting: Through-hole mountable
  • Height: 1.063" (27.00mm)
  • Dimension: 0.984" L x 0.787" W (25.00mm x 20.00mm)
  • Lines: 2
  • Inductance: 2 mH @ 100 kHz
  • DC Resistance (DCR): 110mOhm
  • Temperature Range: -20°C ~ 120°C
  • Package: Bulk package of 400 units
  • REACH: Unaffected by REACH
