Same model may have multiple batches, images only for reference.

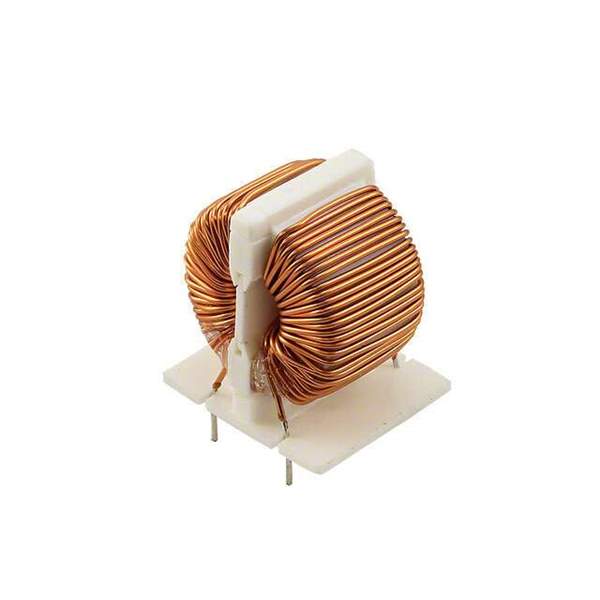

SC-02-30J Real Image
Same model may have multiple batches, images only for reference.

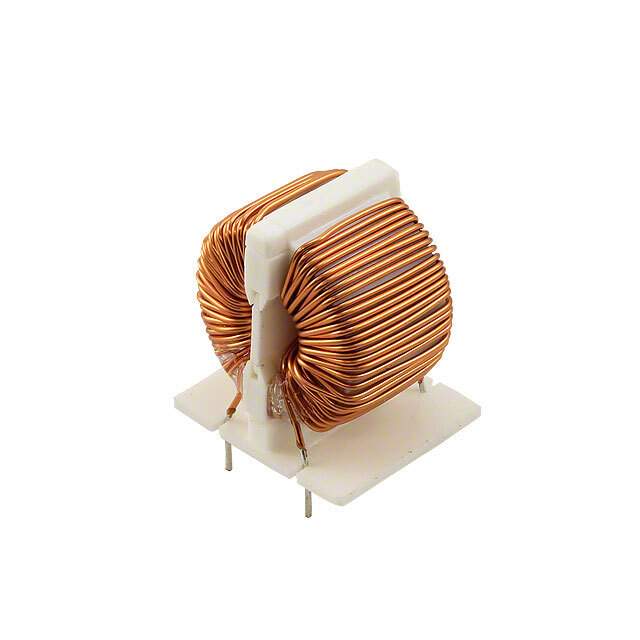

SC-02-30J

Part No SC-02-30J
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 3MH 2A 2LN TH  /  3 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 110mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names UALSC0230J0000,399-10649
Standard Package 400
Win Source Part Number 1091704-SC-02-30J
Ultra Librarian 3D Model Ultra Librarian SC-02-30J CAD Model

Description

This Kemet Common Mode Choke is designed to filter power lines.

  • Voltage Rating: 250V
  • Current Rating: 2A
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Dimensions: 0.984" L x 0.787" W (25.00mm x 20.00mm)
  • Height (Seated): 1.063" (27.00mm)
  • Inductance: 3 mH @ 100 kHz
  • DC Resistance (DCR): 110mOhm
  • Temperature Range: -25°C ~ 120°C
  • ROHS3: Compliant
  • REACH: Unaffected
