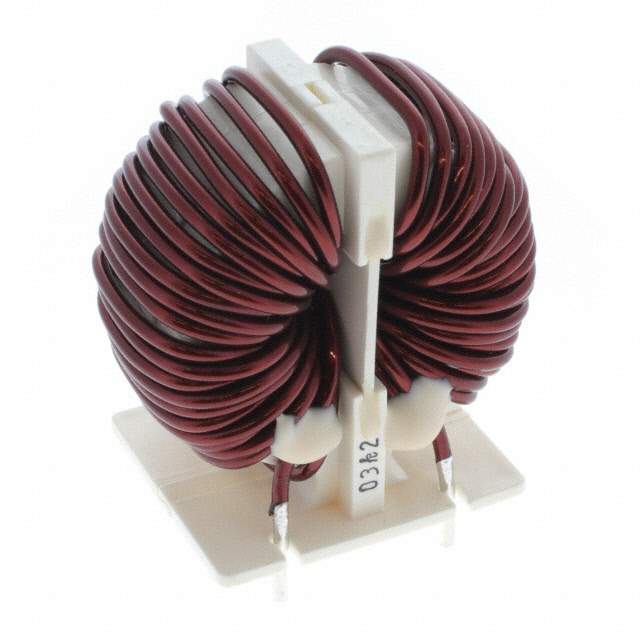

SC-15-12J-MI Real Image
Same model may have multiple batches, images only for reference.

SC-15-12J-MI

Part No SC-15-12J-MI
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.2 mH @ 10 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 6.2mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.378" L x 0.984" W (35.00mm x 25.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-15
Other Names 399-SC-15-12J-MI,UALSC1512JMI00
Standard Package 180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277016-SC-15-12J-MI
Ultra Librarian 3D Model Ultra Librarian SC-15-12J-MI CAD Model

Description

The KEMET SC series common mode choke is designed to filter power lines in electronic circuits.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 15A
  • Inductance: 1.2 mH @ 10 kHz
  • DC Resistance: 6.2 mOhm
  • Height: 35.00mm
  • Package: Tray
  • Mounting Type: Through hole
  • Temperature Range: 25°C to 120°C
