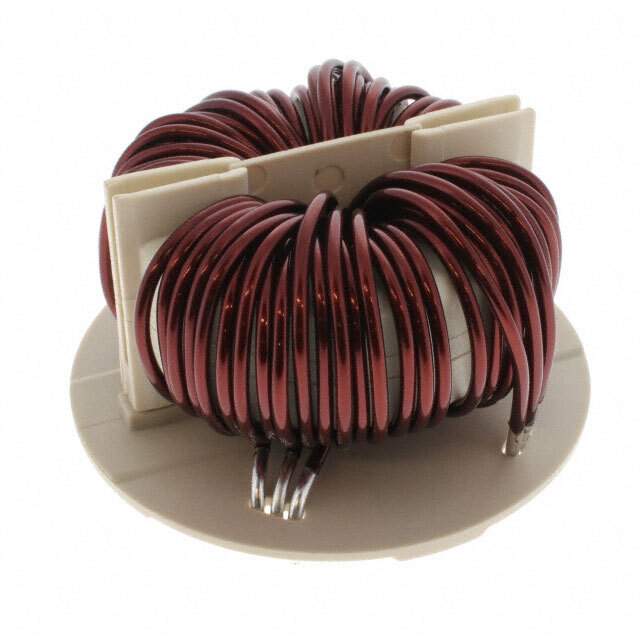

SCF47C-400-1R8C040JH Real Image
Same model may have multiple batches, images only for reference.

SCF47C-400-1R8C040JH

Part No SCF47C-400-1R8C040JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4 mH @ 10 kHz
Current Rating (Max) 40A
DC Resistance (DCR) (Max) 2.1mOhm
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.756" Dia (70.00mm)
Height (Max) 1.496" (38.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCF47C
Other Names 399-SCF47C-400-1R8C040JH,UALF47C040JH00
Standard Package 36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276918-SCF47C-400-1R8C040JH
Ultra Librarian 3D Model Ultra Librarian SCF47C-400-1R8C040JH CAD Model

Description

The KEMET SCF47C-400-1R8C040JH is a common mode choke filter designed to reduce electromagnetic interference (EMI) in power line applications.

  • Maximum AC and DC Voltage Rating: 500V
  • Maximum Current Rating: 40A
  • Package Type: Tray
  • Mounting Type: Through hole
  • Standard Package: 36
  • Filter Type: Power line
  • Height: 1.496 inches
  • Dimension: 2.756 inches in diameter
  • Temperature Range: 25°C to 120°C
  • Inductance: 4mH @ 10kHz
  • DC Resistance: 2.1mOhm
