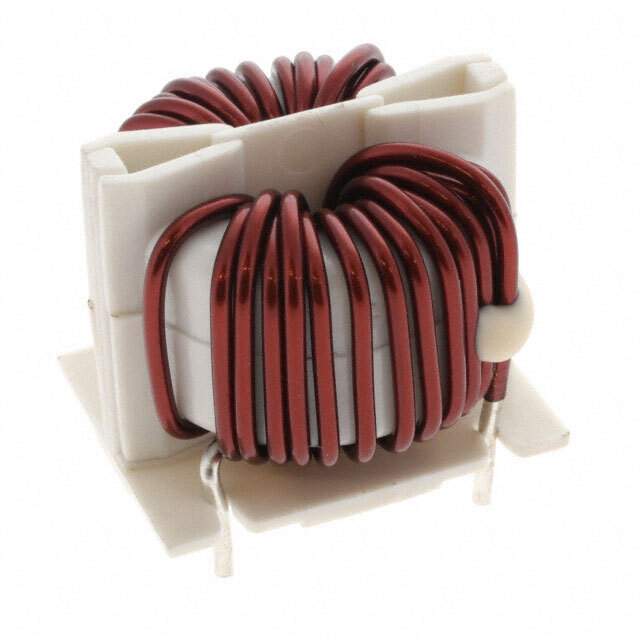

SCR31B-105-1R4A055JH Real Image
Same model may have multiple batches, images only for reference.

SCR31B-105-1R4A055JH

Part No SCR31B-105-1R4A055JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5.5 mH @ 10 kHz
Current Rating (Max) 10.5A
DC Resistance (DCR) (Max) 22mOhm
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.890" Dia (48.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR31B
Other Names 399-20211,UALF11R4A055JH
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276886-SCR31B-105-1R4A055JH
Ultra Librarian 3D Model Ultra Librarian SCR31B-105-1R4A055JH CAD Model

Description

The KEMET SCR31B-105-1R4A055JH is a common mode choke designed for use in power line filters.

  • Manufacturer: KEMET
  • Product Name: SCR31B-105-1R4A055JH
  • Voltage Rating: 500V AC/DC
  • Maximum Current Rating: 10.5A
  • Package: Horizontal, 4 PC pin
  • Height: 1.378 inches (35.00mm)
  • Inductance: 5.5 mH @ 10 kHz
  • DC Resistance: 22mOhm
