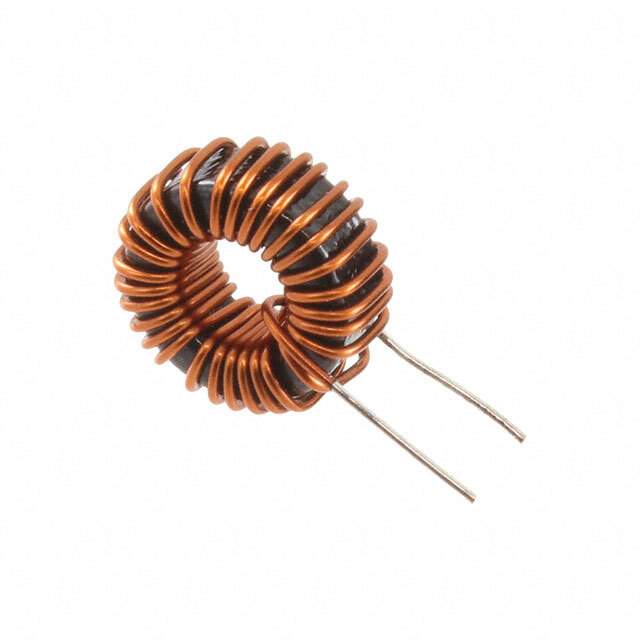

Same model may have multiple batches, images only for reference.

SHBC13-1R2A0127V

Name: SHBC13-1R2A0127V
Brand: Kemet
SKU: 1272748
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SHBC13-1R2A0127V
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SHBC
Package	Bulk
Type	Toroidal
Material - Core	Alloy Powder
Inductance	127 µH
Tolerance	±20%
Current Rating (Amps)	6 A
Shielding	Unshielded
DC Resistance (DCR)	31.7mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	Radial
Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Base Product Number	SHBC13
Other Names	399-19142,UALS131R2A0127
Standard Package	150
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272748-SHBC13-1R2A0127V
Ultra Librarian 3D Model	Ultra Librarian SHBC13-1R2A0127V CAD Model

Alternative Products

Description

The SHBC13-1R2A0127V is a toroidal fixed inductor from KEMET.

Shielding: Unshielded
Inductance: 127 μH
Tolerance: ±20%
DC Resistance (DCR): 31.7 mOhm max
Supplier Device Package: Radial
Mounting Type: Through-hole
Package/Case: Radial, vertical (open)
Height Seated (max): 1.181" (30.00 mm)
Standard Package: 150
Material Core: Alloy powder
Operating Temperature: -40°C to 125°C
Dimension: 1.181" Dia (30.00 mm)
ECCN: EAR99
REACH: Unaffected
Current Rating: 6 A
Inductance Frequency-Test: 100 kHz
