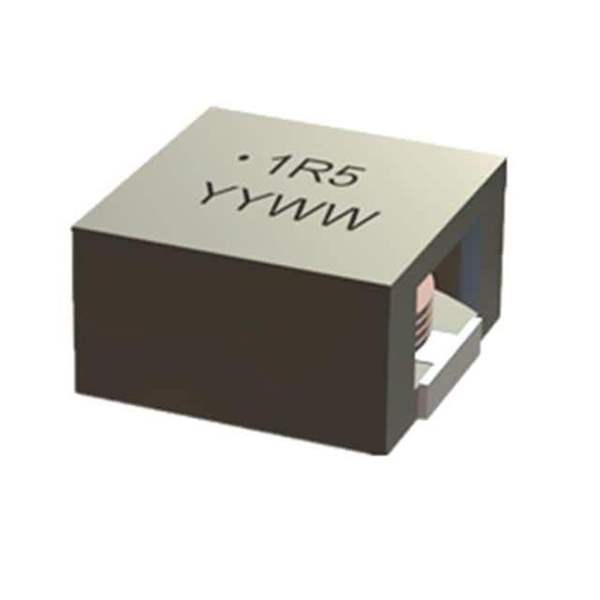

Same model may have multiple batches, images only for reference.

SC2511-R22MHF

Get a Quote

Part No	SC2511-R22MHF
Manufacturer	ITG Electronics, Inc.
Catalog	Fixed Inductors
Description	0.22UH, 20%, 1.5MOHM, 35AMP MAX. / 220 nH Inductor 35 A 1.5mOhm
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	ITG Electronics, Inc.
Series	SC2511
Package	Tape & Reel (TR)
Inductance	220 nH
Current Rating (Amps)	35 A
DC Resistance (DCR)	1.5mOhm
Temperature Range - Operating	-55°C ~ 150°C
Mounting	SMD (SMT)
Dimension	0.291" L x 0.268" W (7.40mm x 6.80mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	RoHS non-compliant
REACH Status	Vendor Undefined
HTSUS	8504.50.8000
Other Names	3013-SC2511-R22MHFTR
Standard Package	1,500
Win Source Part Number	1189947-SC2511-R22MHF
Ultra Librarian 3D Model	Ultra Librarian SC2511-R22MHF CAD Model

Alternative Products

Description

The SC2511-R22MHF product with Win Source Part Number 1189947 is a fixed inductor with an inductance of 220nH. The manufacturer for this product is ITG Electronics, Inc.

Win Source Part Number: 1189947
Inductor Type: Fixed Inductor
Inductance: 220nH
Package: Tape and Reel (TR)
Standard Package: 1,500
DC Resistance: 1.5mOhm
Operating Temperature Range: -55°C to 150°C
Dimension: 0.291" L x 0.268" W (7.40mm x 6.80mm)
Current Rating (Amps): 35A
