Same model may have multiple batches, images only for reference.

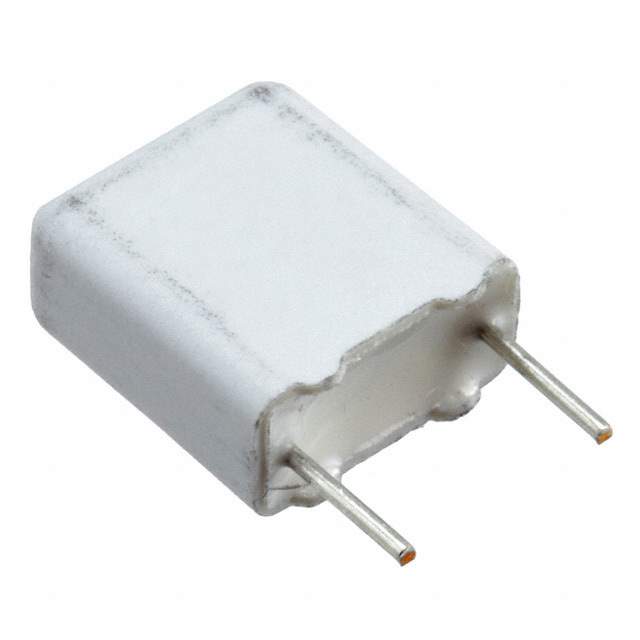

SMR7.5224K100K03L4BULK Real Image
Same model may have multiple batches, images only for reference.

SMR7.5224K100K03L4BULK

Part No SMR7.5224K100K03L4BULK
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 100VDC RAD / Cap Film 0.22uF 100V PPS 10% (10 X 5 X 11mm) Radial Wound 7.5mm 150°C Automotive Bulk
Datasheet
SMR7.5224K100K03L4BULK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series SMR
Packaging Bulk
Capacitance 0.22μF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized
Operating Temperature Range -55°C ~ 150°C
Mounting Style Through Hole
Package Radial
Dimension 0.394" L x 0.197" W (10.00mm x 5.00mm)
Height - Seated (Maximum) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General
Features High Temperature
Win Source Part Number 789383-SMR7.5224K100K03L4BULK
Popularity Medium
Supply and Demand Status Limited
Family Name SMR
Introduction Date April 19, 2012
ECCN EAR99
Country of Origin China, Indonesia
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SMR7.5224K100K03L4BULK CAD Model

Description

This electronic component is a capacitor manufactured by Kemet with the Win Source Part Number: 789383-SMR7.5224K100K03L4BULK.

  • Series: SMR
  • Packaging: Bulk
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C ~ 150°C
  • Features: High Temperature
  • Termination: PC Pins
  • Package: Radial
  • Voltage Rating-AC: 63V
  • Voltage Rating-DC: 100V
  • Capacitance: 0.22μF
  • Tolerance: ±10%
  • Lead Spacing: 0.295" (7.50mm)
  • Dielectric Material: polyphenylene sulfide (PPS), metallized
  • Category: Capacitors
  • Dimension: 0.394" L x 0.197" W (10.00mm x 5.00mm)
  • Height-Seated (Maximum): 0.433" (11.00mm)
