Same model may have multiple batches, images only for reference.

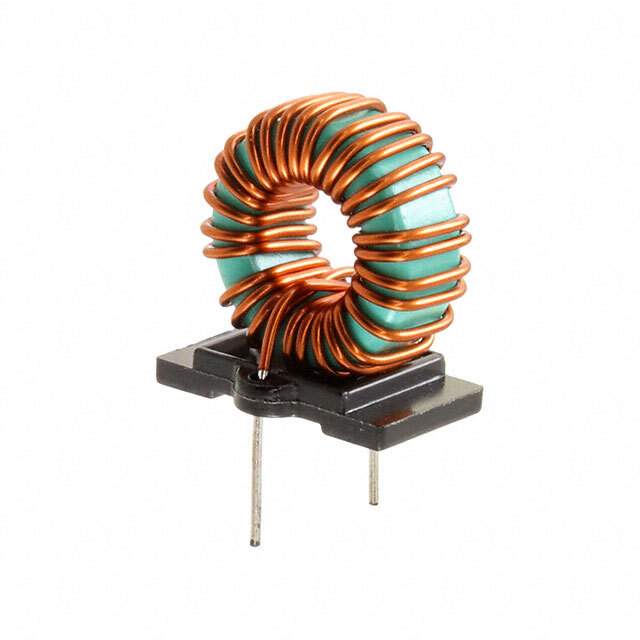

SN8S-300JA Real Image
Same model may have multiple batches, images only for reference.

SN8S-300JA

Part No SN8S-300JA
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-300JA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 26 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 42mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.709" L x 0.472" W (18.00mm x 12.00mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SN8S
Other Names 399-20589,UALSN8S300JA00
Standard Package 300
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276846-SN8S-300JA
Ultra Librarian 3D Model Ultra Librarian SN8S-300JA CAD Model

Description

The SN8S-300JA is a common mode choke filter designed and manufactured by KEMET.

  • Voltage Rating: AC and DC
  • Current Rating: 2A
  • Standard Package: 300
  • Mounting: Through 2 PC Pin
  • Filter Type: Power Line
  • Height: 0.709" (18.00mm)
  • Number of Lines: 2
  • Inductance @ Frequency: 26 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 42mOhm
  • Temperature Range: -25°C ~ 105°C
  • Dimension: 0.709" L x 0.472" W (18.00mm x 12.00mm)
  • Mfr: KEMET
  • Other Names: 399-20589, UALSN8S300JA00
