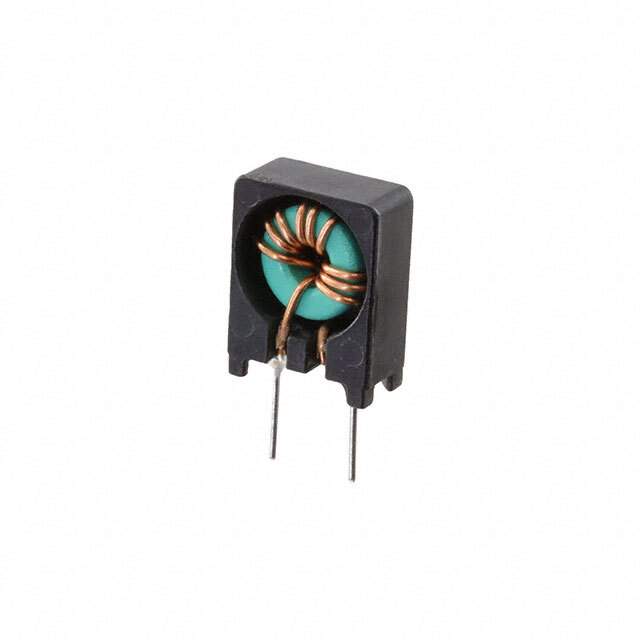

SNT-S20 Real Image
Same model may have multiple batches, images only for reference.

SNT-S20

Part No SNT-S20
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 6 µH @ 100 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 35Ohm
Temperature Range - Operating 20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names 399-SNT-S20,UDLSNT0S200000
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276814-SNT-S20
Ultra Librarian 3D Model Ultra Librarian SNT-S20 CAD Model

Description

The KEMET SNT-S20 is a signal line common mode choke with a maximum current rating of 1.5A.

  • Inductance: 6 µH @ 100 kHz
  • DC Resistance: 35Ohm
  • Package: Vertical, 2 PC pin
  • Dimension: 0.374 inches (9.50mm) in length and 0.197 inches (5.00mm) in width
