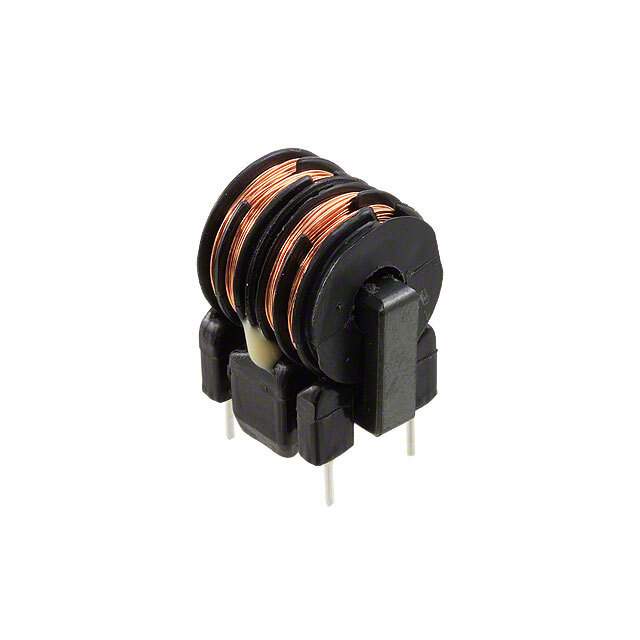

SS21V-R180044 Real Image
Same model may have multiple batches, images only for reference.

SS21V-R180044

Part No SS21V-R180044
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.4 mH @ 1 kHz
Current Rating (Max) 1.8A
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-10686,UAL21VR1800440
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276761-SS21V-R180044
Ultra Librarian 3D Model Ultra Librarian SS21V-R180044 CAD Model

Description

The SS series common mode choke from KEMET is a bulk-packaged filter designed for power line filtering applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1.8A
  • Mounting: through-hole mounting
  • Lines: 2 lines
  • Inductance: 4.4mH @ 1 kHz
  • DC Resistance (DCR): 200mOhm
  • Temperature Range: -25°C to 120°C
  • Package: vertical, 4 PC pin
  • Dimensions: 0.807" L x 0.650" W (20.50mm x 16.50mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.31.4065
