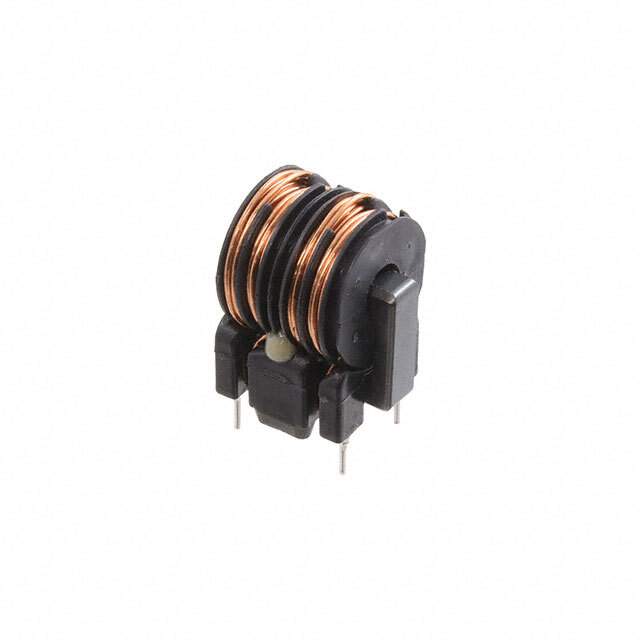

SS21V-R220026 Real Image
Same model may have multiple batches, images only for reference.

SS21V-R220026

Part No SS21V-R220026
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.6 mH @ 1 kHz
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 130mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.811" L x 0.661" W (20.60mm x 16.80mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-SS21V-R220026
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276727-SS21V-R220026
Ultra Librarian 3D Model Ultra Librarian SS21V-R220026 CAD Model

Description

The SS series common mode choke from KEMET is a power line filter type, which is designed to provide optimal attenuation of common-mode noise.

  • Package: Tray
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 2.2A
  • Standard Package: 100
  • Lines: Two lines
  • Inductance: 2.6 mH @ 1 kHz
  • DC Resistance (DCR): 130mOhm
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Dimensions: 0.811” L x 0.661” W (20.60mm x 16.80mm)
  • Manufacturer: KEMET
  • Also known as: 399-SS21V-R220026
