Same model may have multiple batches, images only for reference.

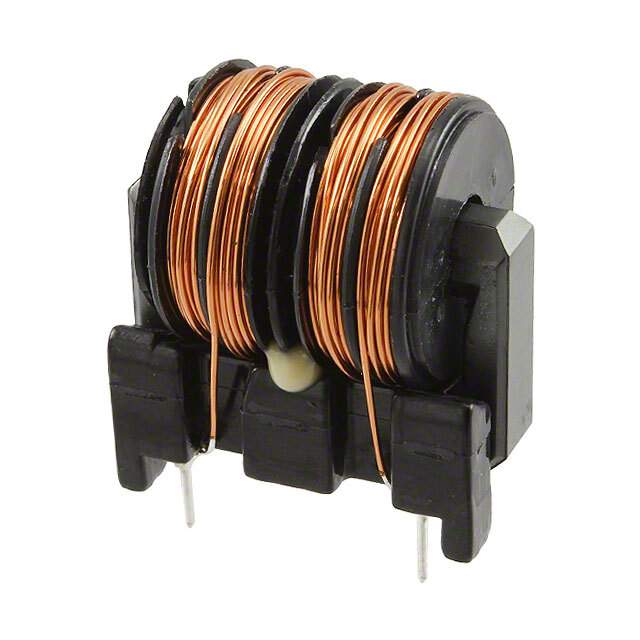

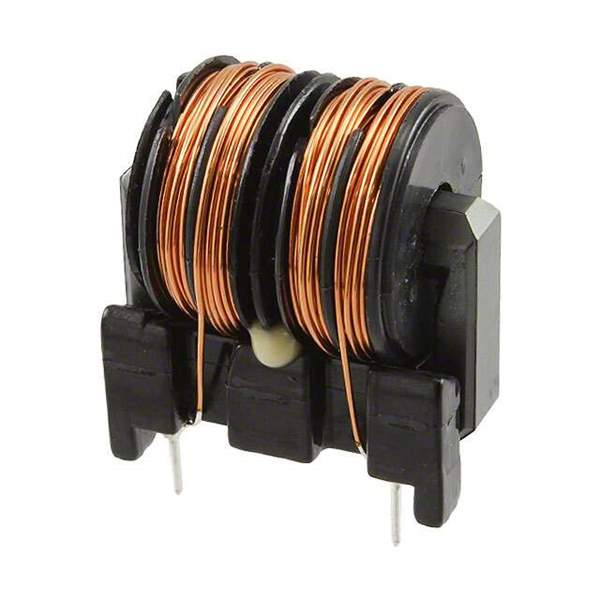

SS30V-R080960 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R080960

Part No SS30V-R080960
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 96 mH @ 1 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 1.5Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-SS30V-R080960,UAL30VR0809600
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276711-SS30V-R080960
Ultra Librarian 3D Model Ultra Librarian SS30V-R080960 CAD Model

Description

The SS30V-R080960 is a common mode choke from KEMET.

  • Series: SS series
  • Application: Power line filtering
  • Voltage Rating: 250V AC
  • Current Rating: 800mA
  • Inductance: 96 mH @ 1 kHz
  • DC Resistance (DCR): 1.5Ohm
  • Package: Tray
  • Standard Packages: 200
  • Mounting Type: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.4000
