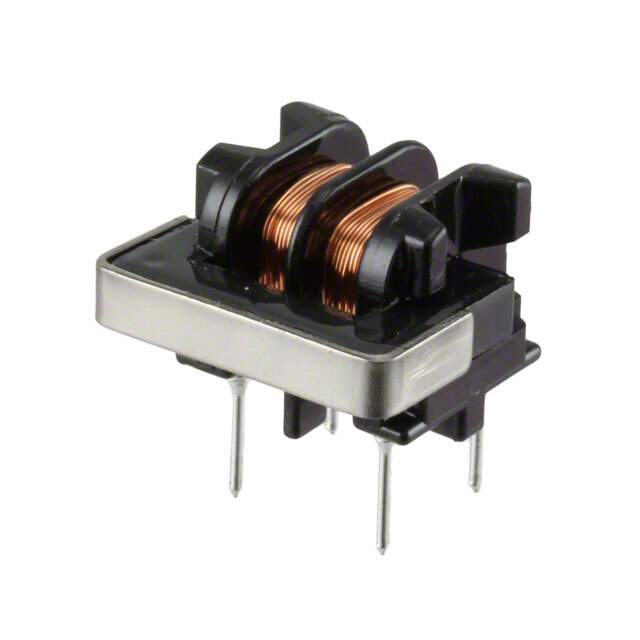

SU9H-R05034 Real Image
Same model may have multiple batches, images only for reference.

SU9H-R05034

Part No SU9H-R05034
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.4 mH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names 399-10710,UALSU9HR050340
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276487-SU9H-R05034
Ultra Librarian 3D Model Ultra Librarian SU9H-R05034 CAD Model

Description

The Kemet SU series common mode choke is a power line filter that has a maximum current rating of 500mA.

  • Maximum Current Rating: 500mA
  • Rated Voltage: 250V (AC)
  • Operating Temperature: -25°C to 120°C
  • Package/Case: Vertical, 4 PC pin
  • Dimension: 0.669" L x 0.610" W (17.00mm x 15.50mm)
  • Height: 0.492" (12.5mm)
  • Lines: 2
  • Model: Kemet 1276487-SU9H-R05034
  • Inductance: 3.4mH @ 1kHz
  • DC Resistance (DCR): 1Ω
