Same model may have multiple batches, images only for reference.

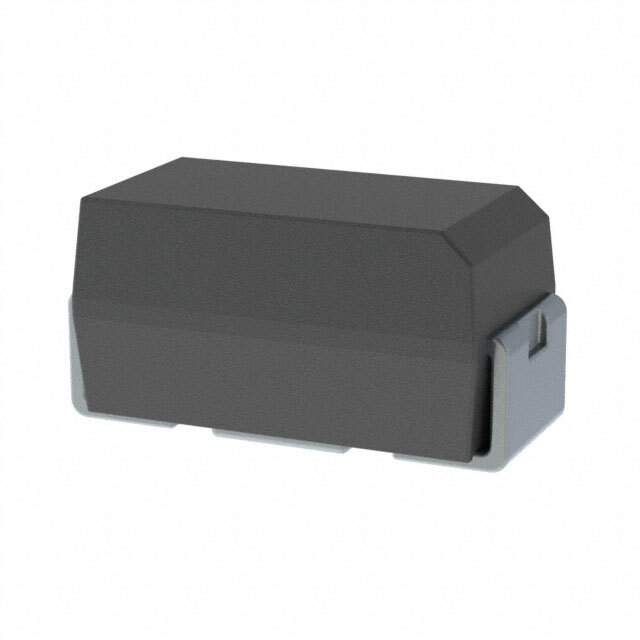

T520A476M2R5ATE090 Real Image
Same model may have multiple batches, images only for reference.

T520A476M2R5ATE090

Part No T520A476M2R5ATE090
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 47UF 2.5V 1206 / Cap Tant Polymer 47uF 2.5VDC A CASE 20% (3.2 X 1.6 X 1.6mm) SMD 3216-18 0.09 Ohm 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 2.5V
Type Molded
ESR (Equivalent Series Resistance) 90 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Size Code A
Features General
Win Source Part Number 796130-T520A476M2R5ATE090
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520A476M2R5ATE090 CAD Model

Description

The KO-CAP T520 from Kemet is a 47μF capacitor that has a tolerance of ±20%.

  • ESR (Equivalent Series Resistance): 90 mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Package: 1206 (3216 Metric)
  • Mounting: SMD
