Same model may have multiple batches, images only for reference.

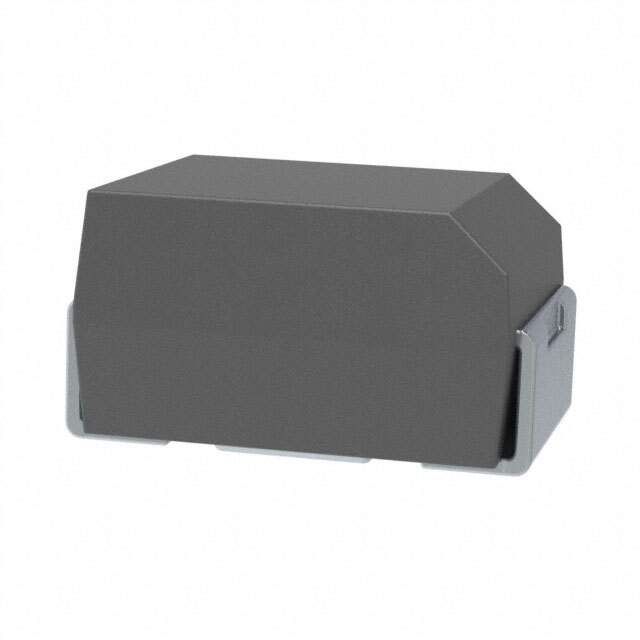

T520B336M010ATE070 Real Image
Same model may have multiple batches, images only for reference.

T520B336M010ATE070

Part No T520B336M010ATE070
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 33UF 10V 3528
Datasheet
T520B336M010ATE070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 33μF
Tolerance ±20%
Voltage Rating 10V
Type Molded
ESR 70 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Manufacturer Size Code B
Features General Purpose
Win Source Part Number 1105030-T520B336M010ATE070
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T520B336M010ATE070 CAD Model

Description

The Kemet T520B336M010ATE070 capacitor is a molded, general-purpose component suitable for use in a variety of electronic devices.

  • Voltage Rating: 10V
  • Capacitance: 33μF
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • ESR: 70 mOhm
  • Mounting: SMD (SMT)
  • Size Code: B
  • Temperature Range: -55°C to 105°C
  • Dimensions: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Popularity: medium
  • Supply and Demand Status: balanced
