Same model may have multiple batches, images only for reference.

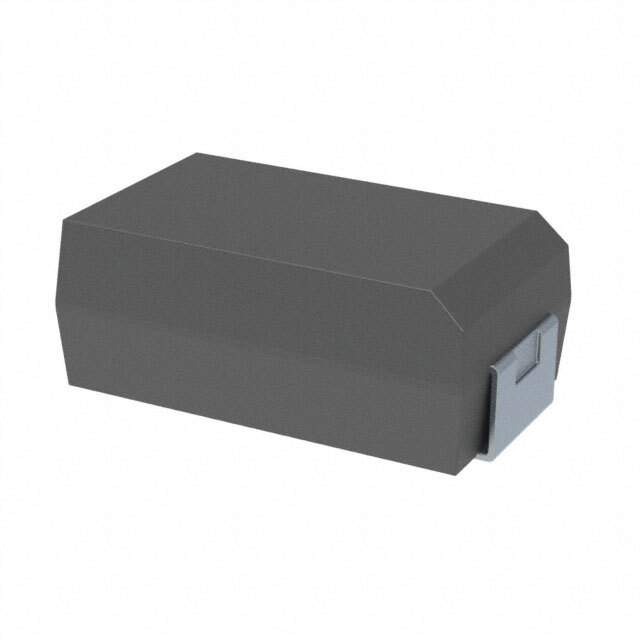

T520D337M006ATE009 Real Image
Same model may have multiple batches, images only for reference.

T520D337M006ATE009

Part No T520D337M006ATE009
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 330UF 6.3V 2917
Datasheet
T520D337M006ATE009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel - TR
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 9 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Manufacturer Homepage www.kemet.com
Win Source Part Number 757069-T520D337M006ATE009
Popularity Medium
Supply and Demand Status Balance
Family Name T520
Introduction Date September 26, 2011
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian T520D337M006ATE009 CAD Model

Description

The Kemet KO-CAP T520 series capacitor is a molded, surface-mounted capacitor with a capacitance of 330μF and a tolerance of ±20%.

  • ESR (Equivalent Series Resistance): 9 mOhm
  • Voltage Rating DC: 6.3V
  • Lifetime: 2000 hours @ 105°C
  • Halogen-Free: Compliant
  • Package: 2917 (7343 Metric)
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Designed for: General use
  • Operating Temperatures: -55°C to 105°C
  • Manufacturer: Kemet
  • Estimated EOL (End of Life) Date: 2028
