Same model may have multiple batches, images only for reference.

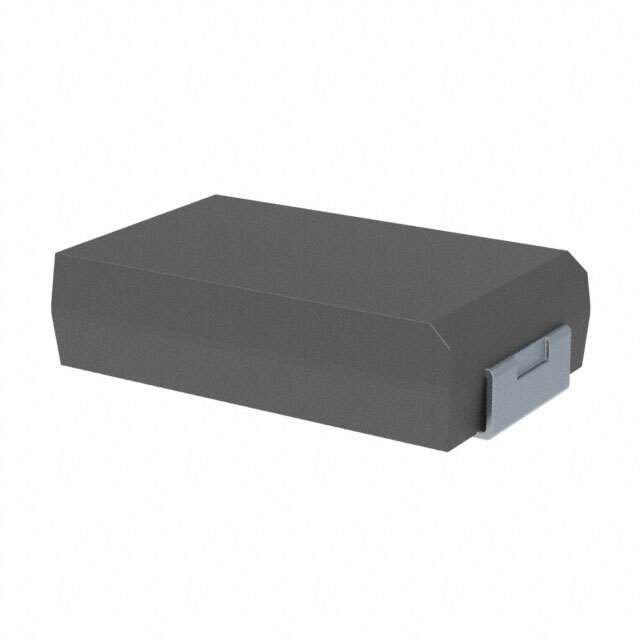

T520V477M006ATE055 Real Image
Same model may have multiple batches, images only for reference.

T520V477M006ATE055

Part No T520V477M006ATE055
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 470UF 6.3V 2917 / 470 µF Molded Tantalum Polymer Capacitor 6.3 V 2917 (7343 Metric) 55mOhm @ 100kHz
Datasheet
T520V477M006ATE055 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum - Polymer Capacitors
Manufacturer Kemet
Packaging Reel - TR
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Type Molded
ESR (Equivalent Series Resistance) 55mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting Surface Mount
Case / Package 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Manufacturer Size Code V
Features General Purpose
Base Product Number T520V
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Part Number 399-10354-1,399-10354-2,399-10354-6
Standard Package 1,000
Win Source Part Number 1329457-T520V477M006ATE055
Ultra Librarian 3D Model Ultra Librarian T520V477M006ATE055 CAD Model

Description

The KEMET T520V477M006ATE055 is a tantalum-polymer capacitor used in a variety of applications.

  • Capacitance: 470 microfarads
  • Tolerance: ±20 percent
  • Voltage Rating: 6.3V
  • ESR: 55 milliohms @ 100 kilohertz
  • Mounting Type: Surface-Mounted
  • Package: 2917 (7343 metric)
  • Size: 0.287 inches by 0.169 inches
  • Height: 0.075 inches
  • Temperature Range: -55 degrees Celsius to 105 degrees Celsius
  • Lifetime: 2000 hours @ 105 degrees Celsius
